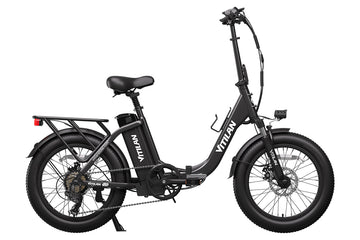

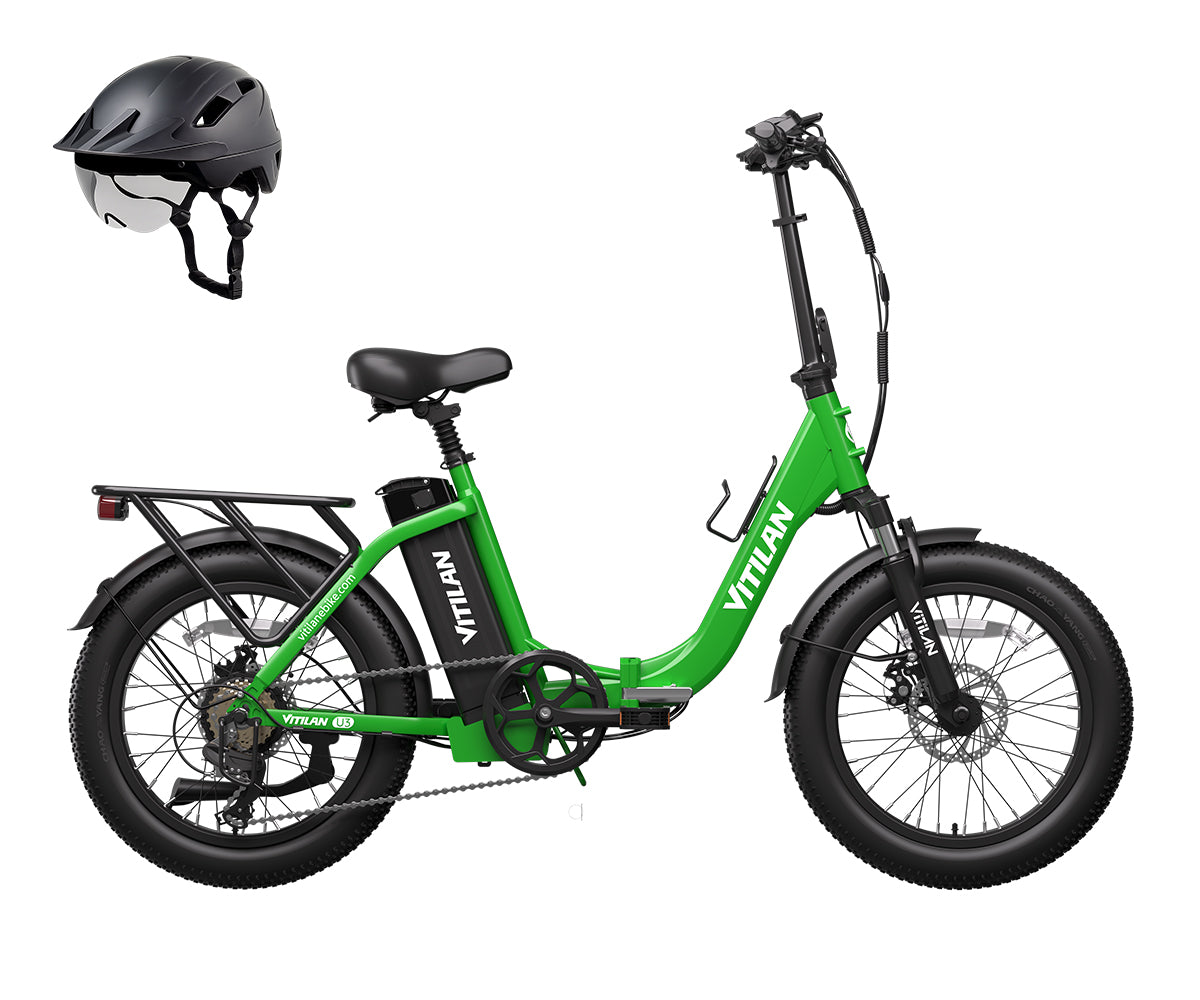

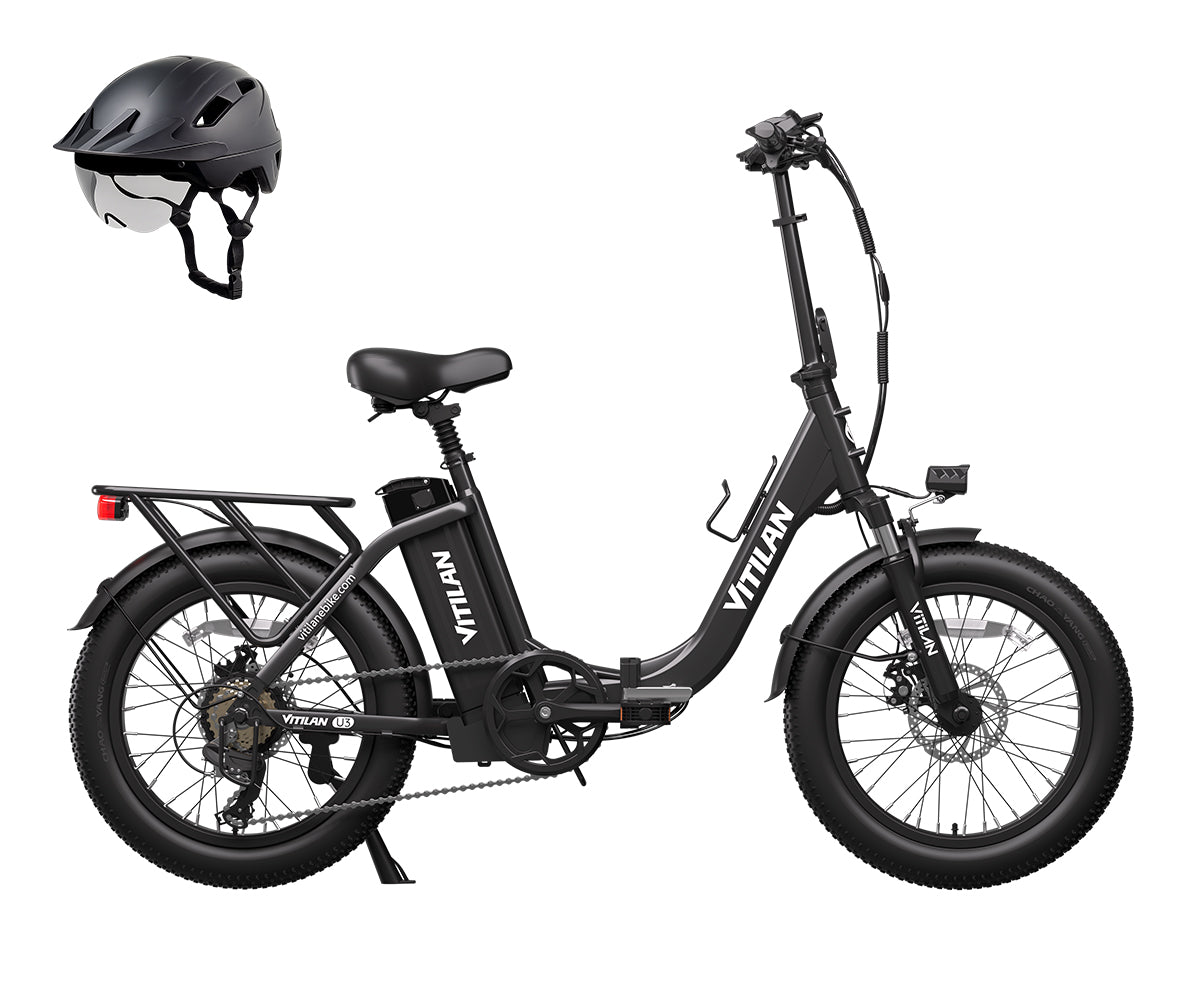

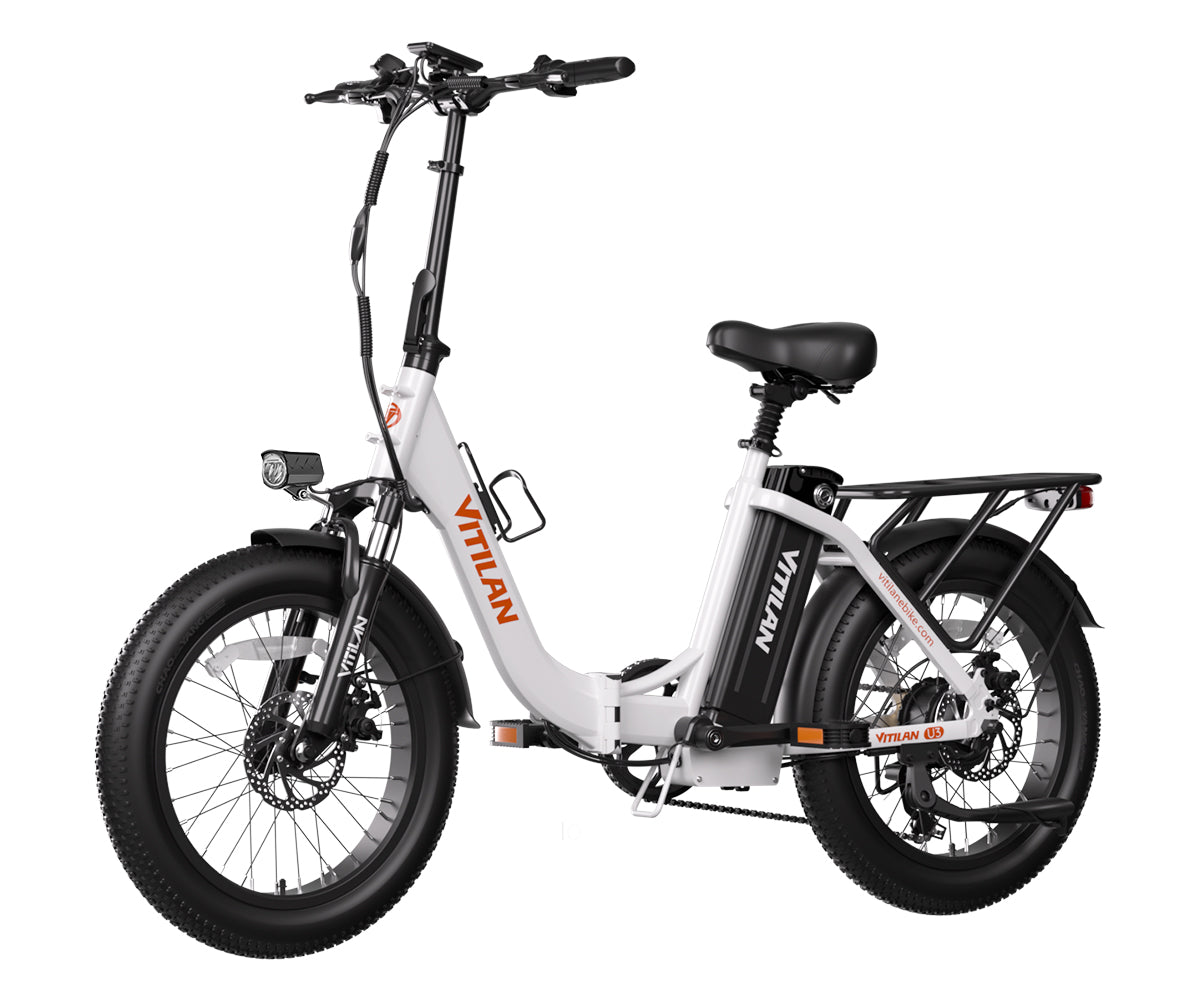

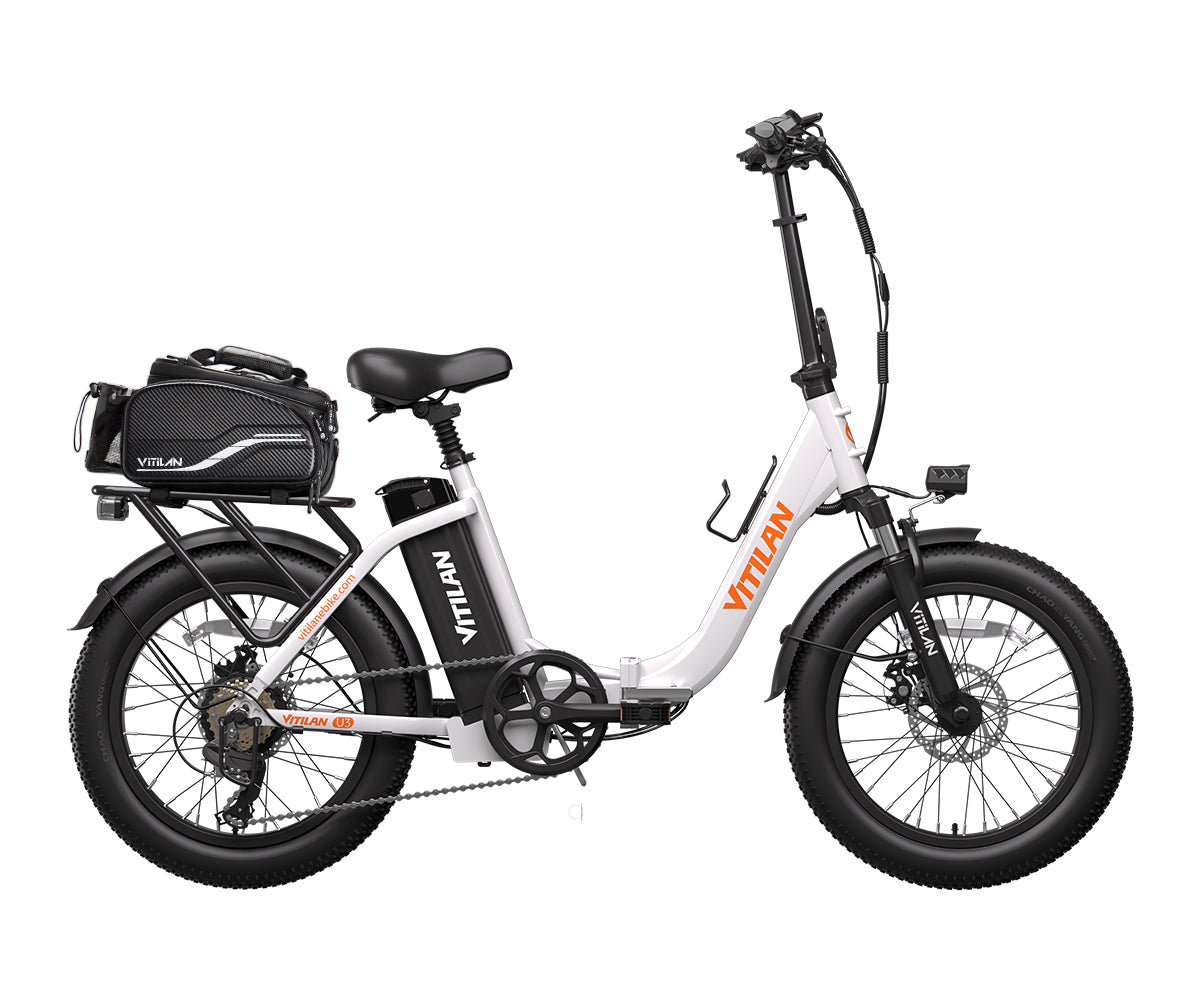

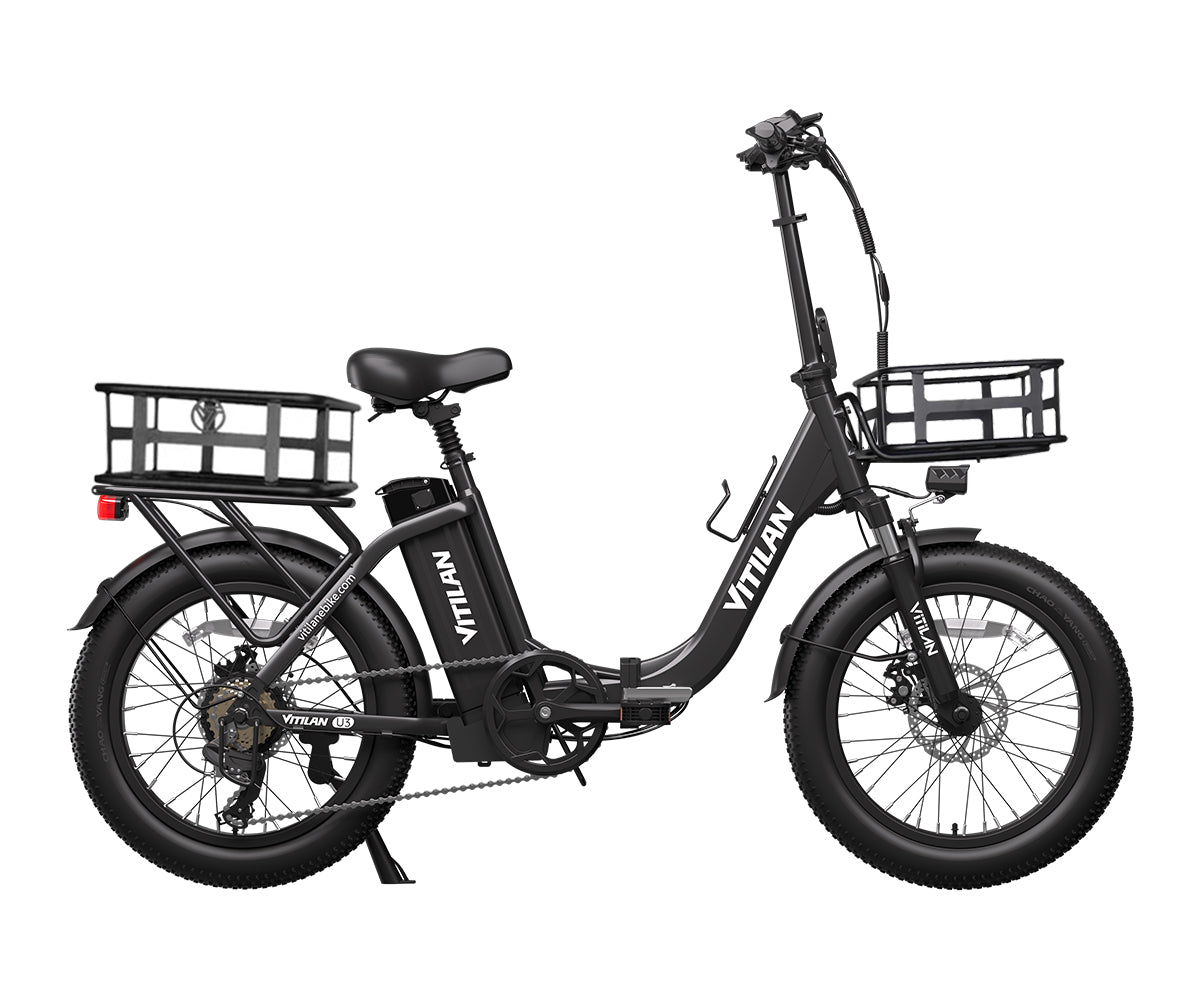

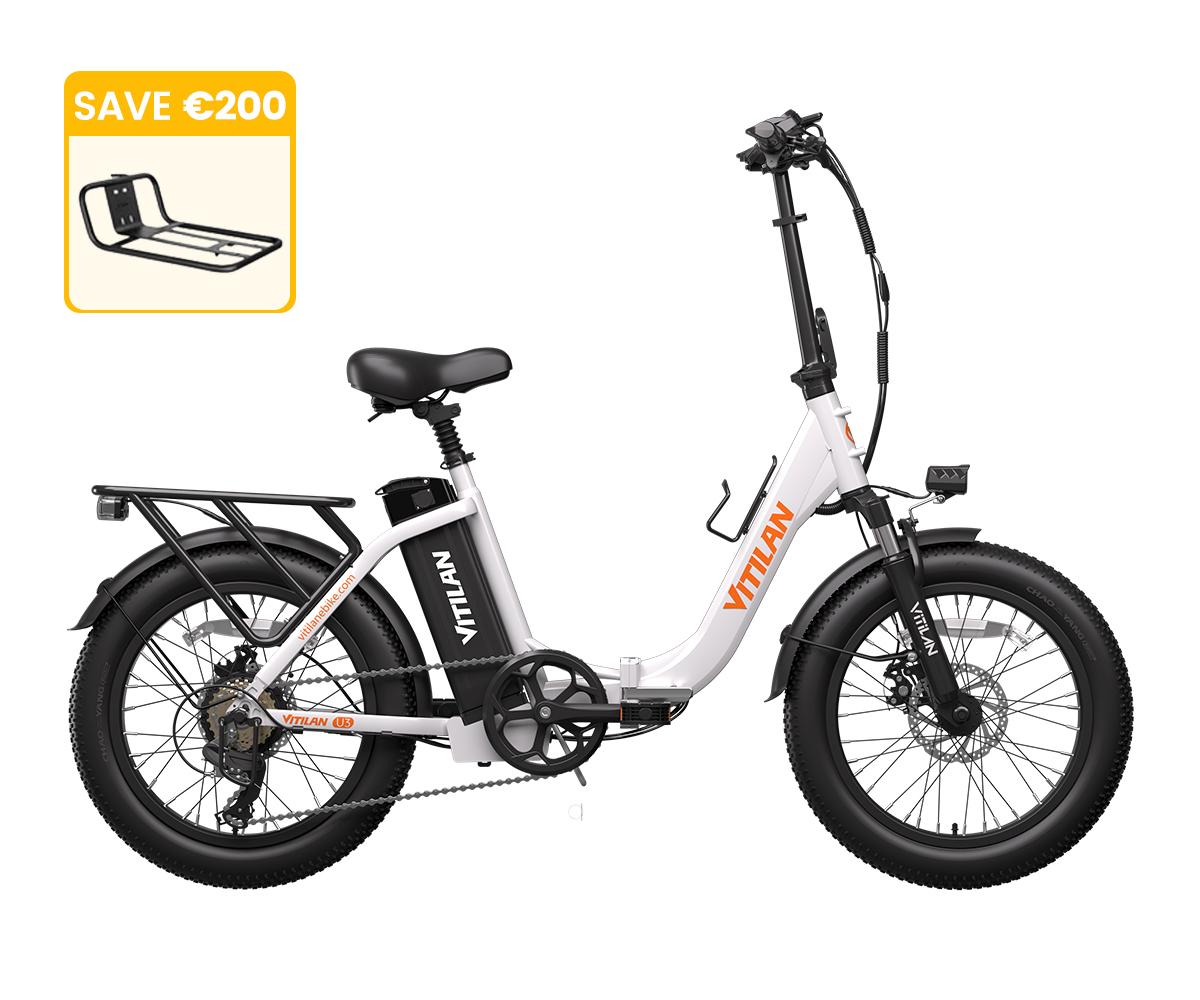

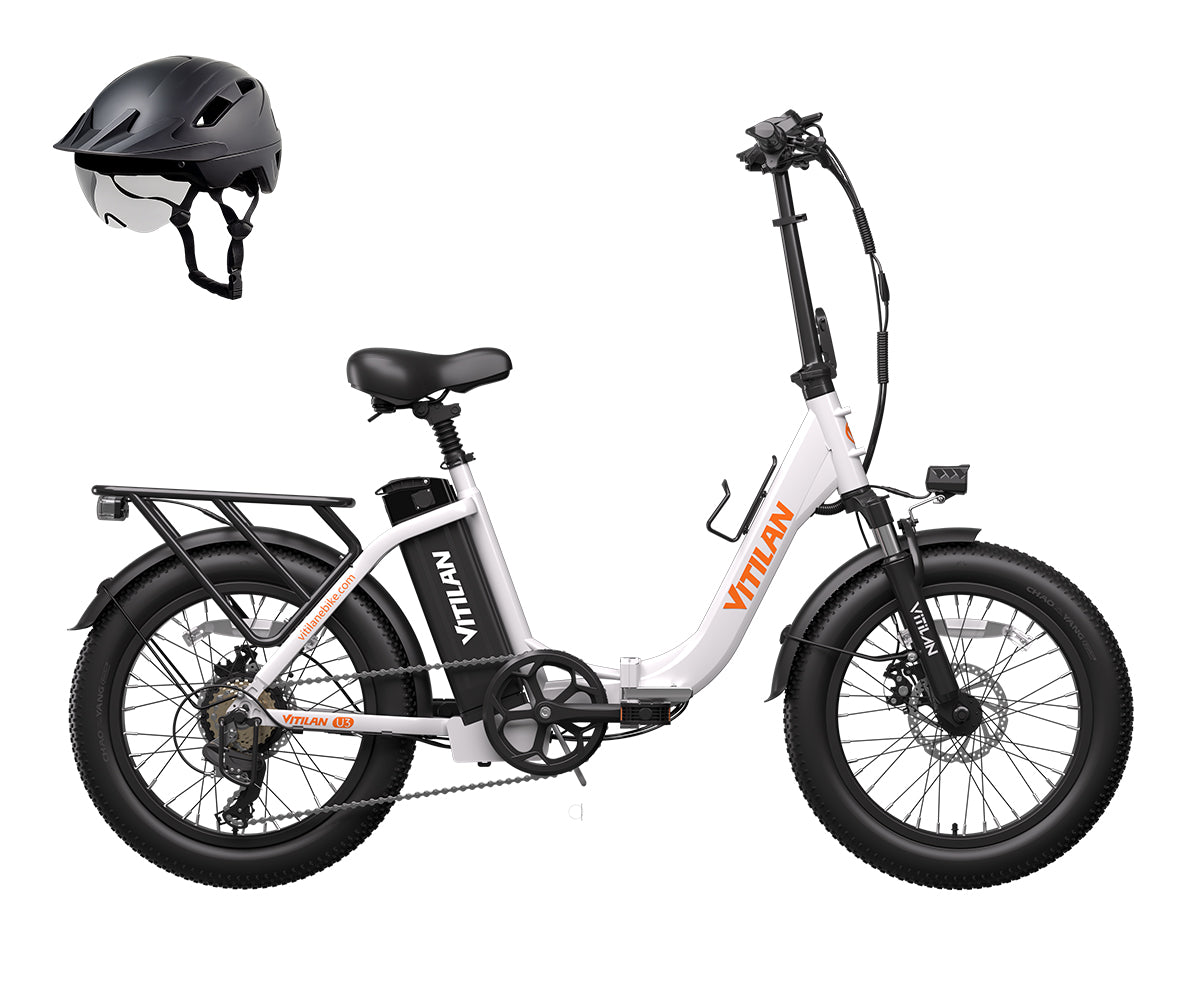

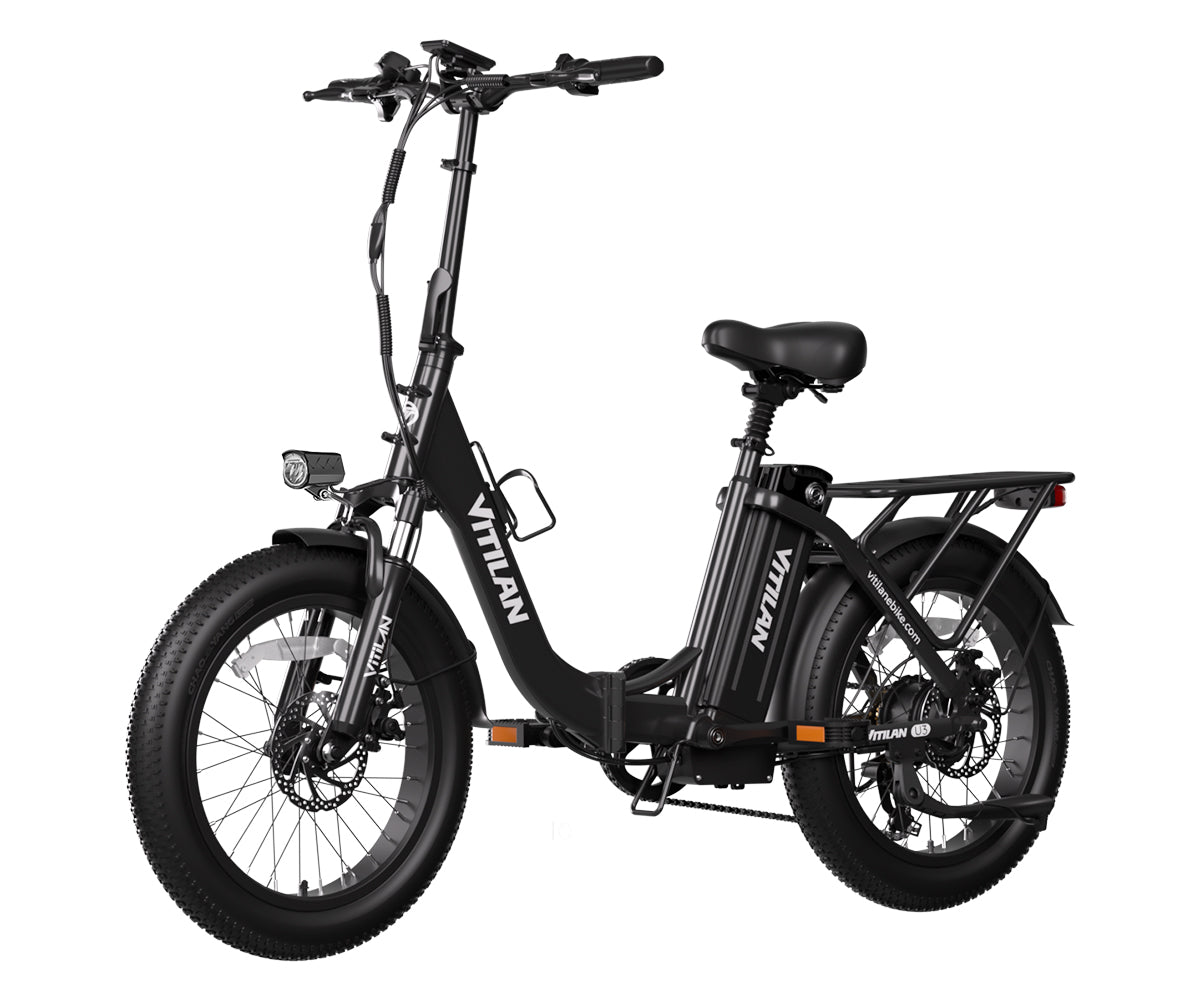

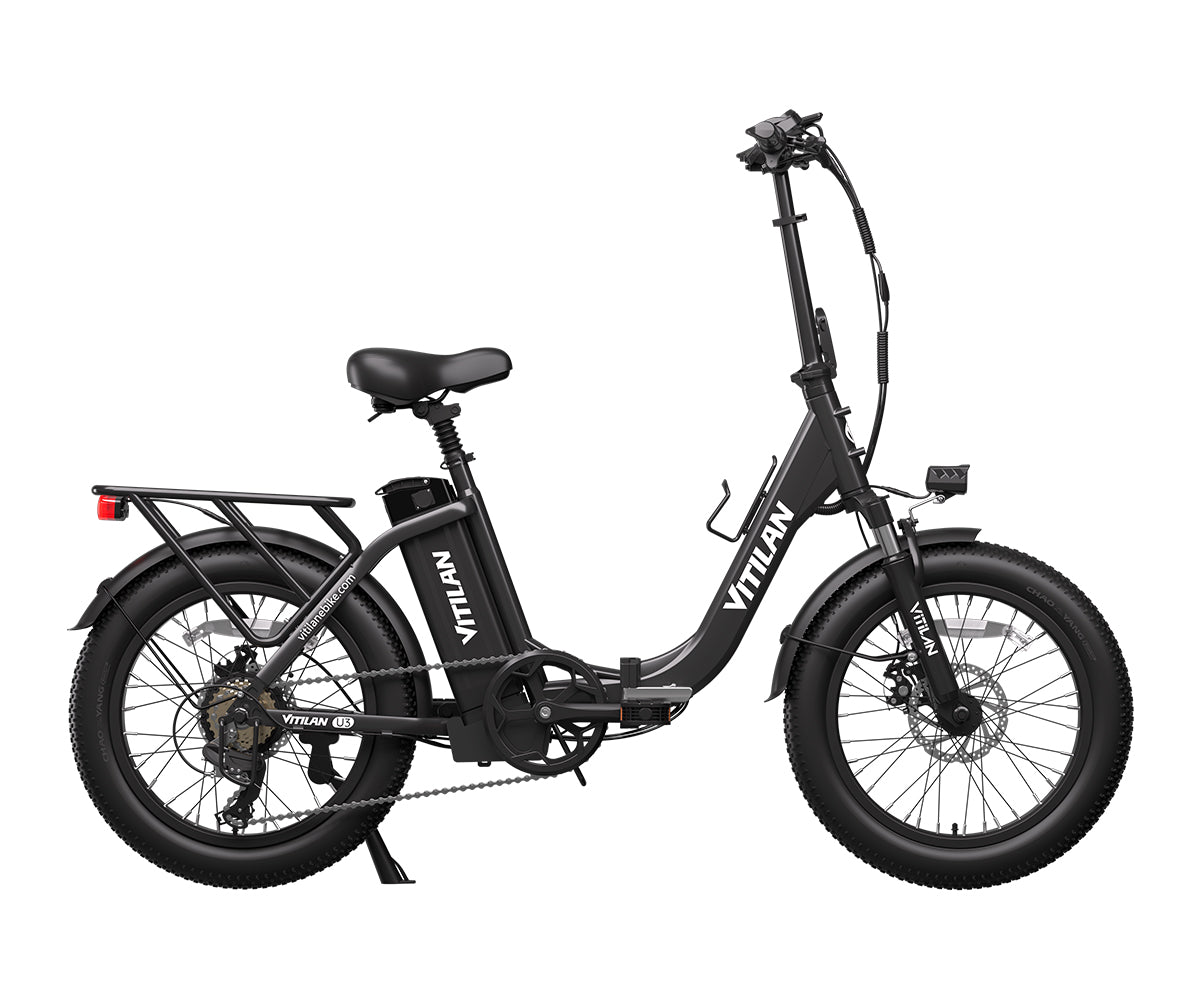

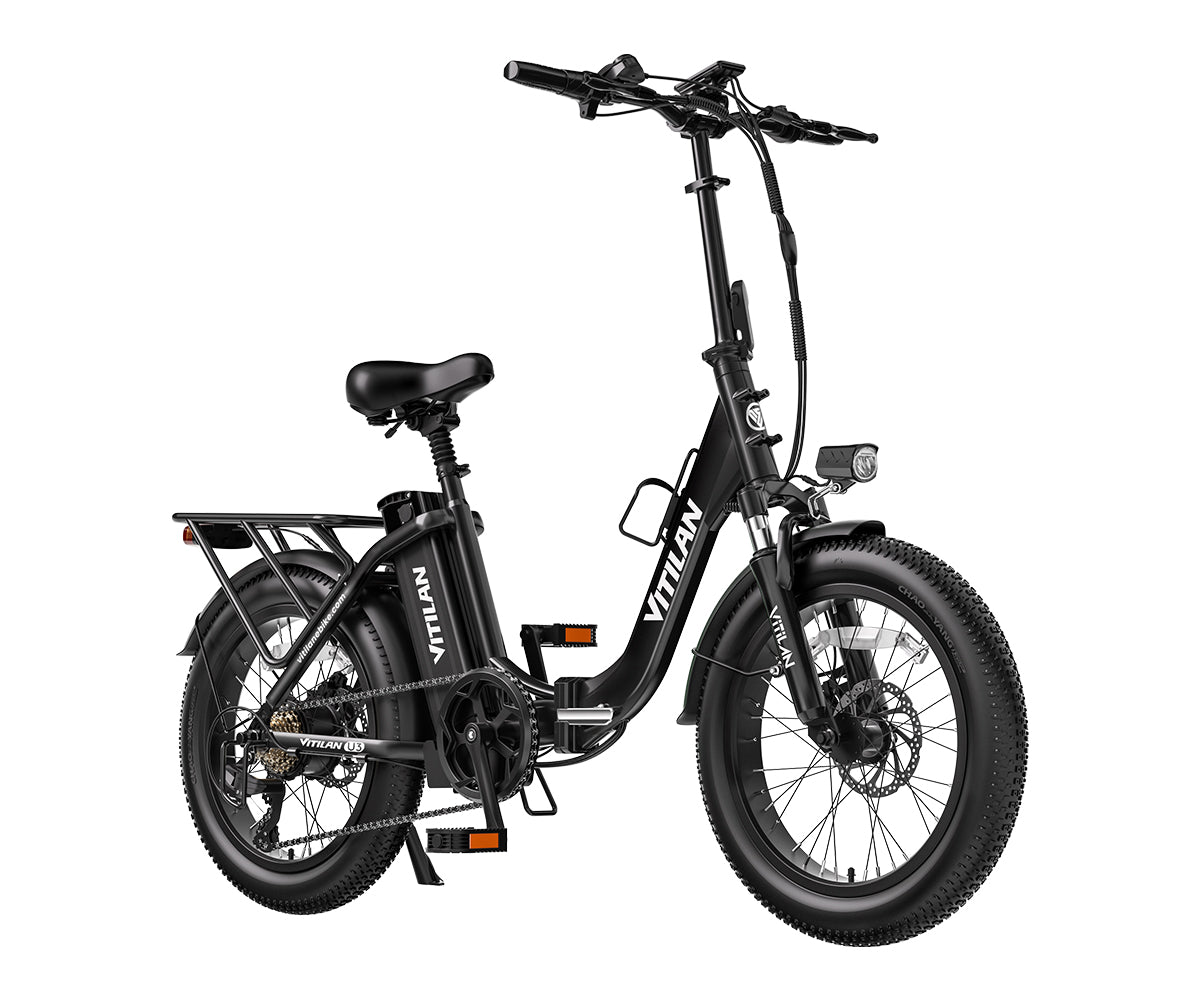

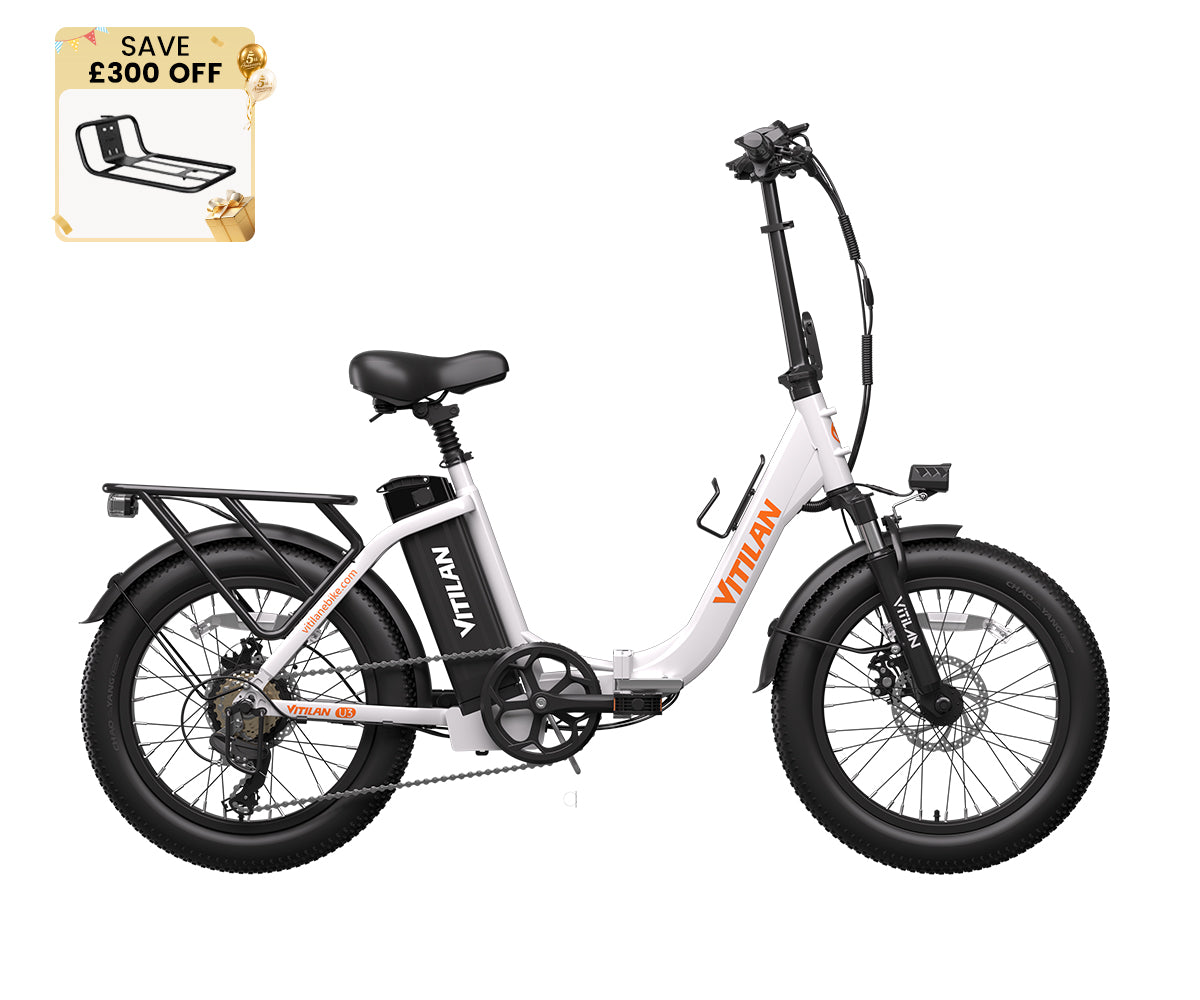

U3 Full Suspension Foldable Fat Tire Electric Bike

Regular price £899.00 GBP
Sale price £899.00 GBP Regular price
Unit price

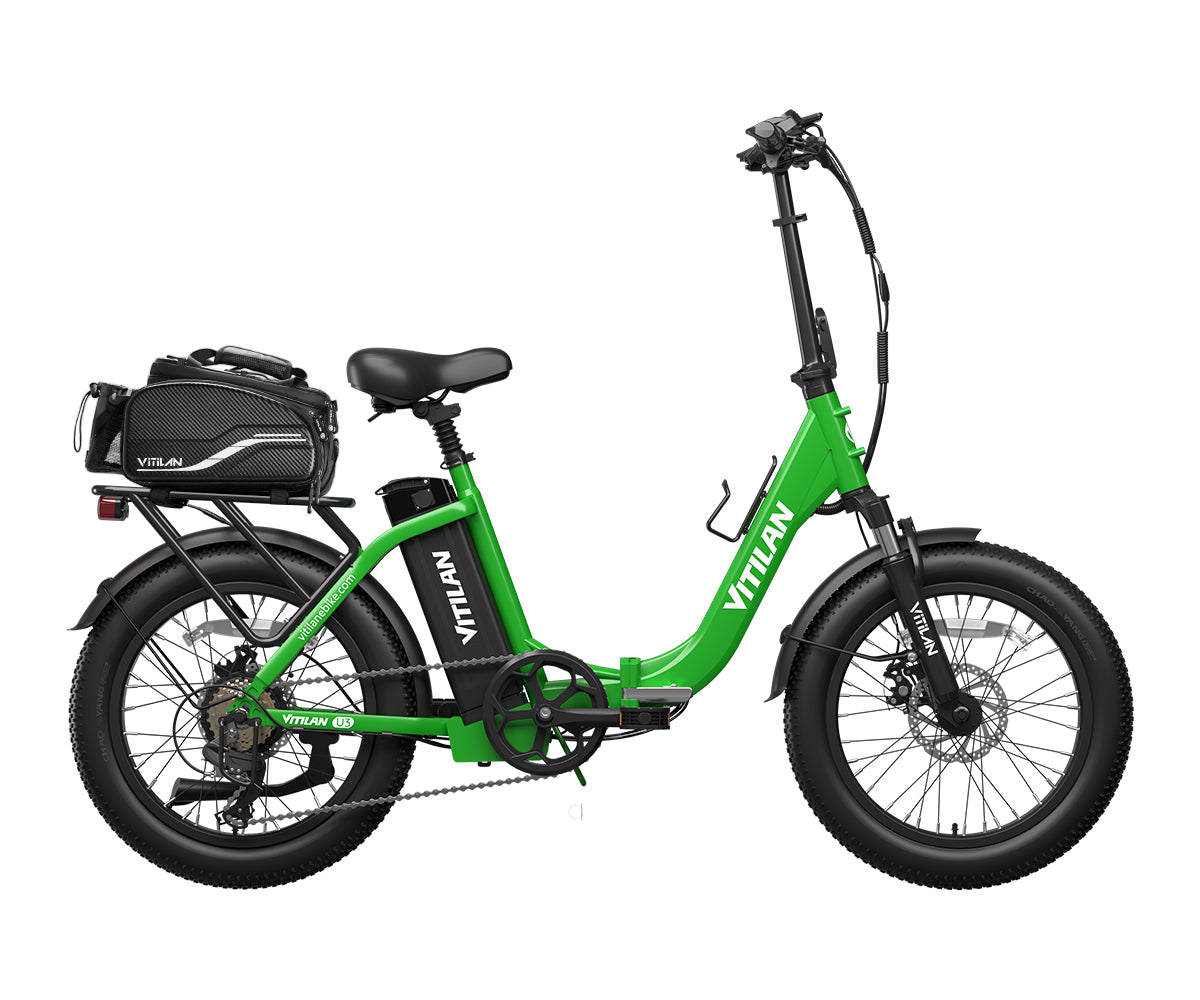

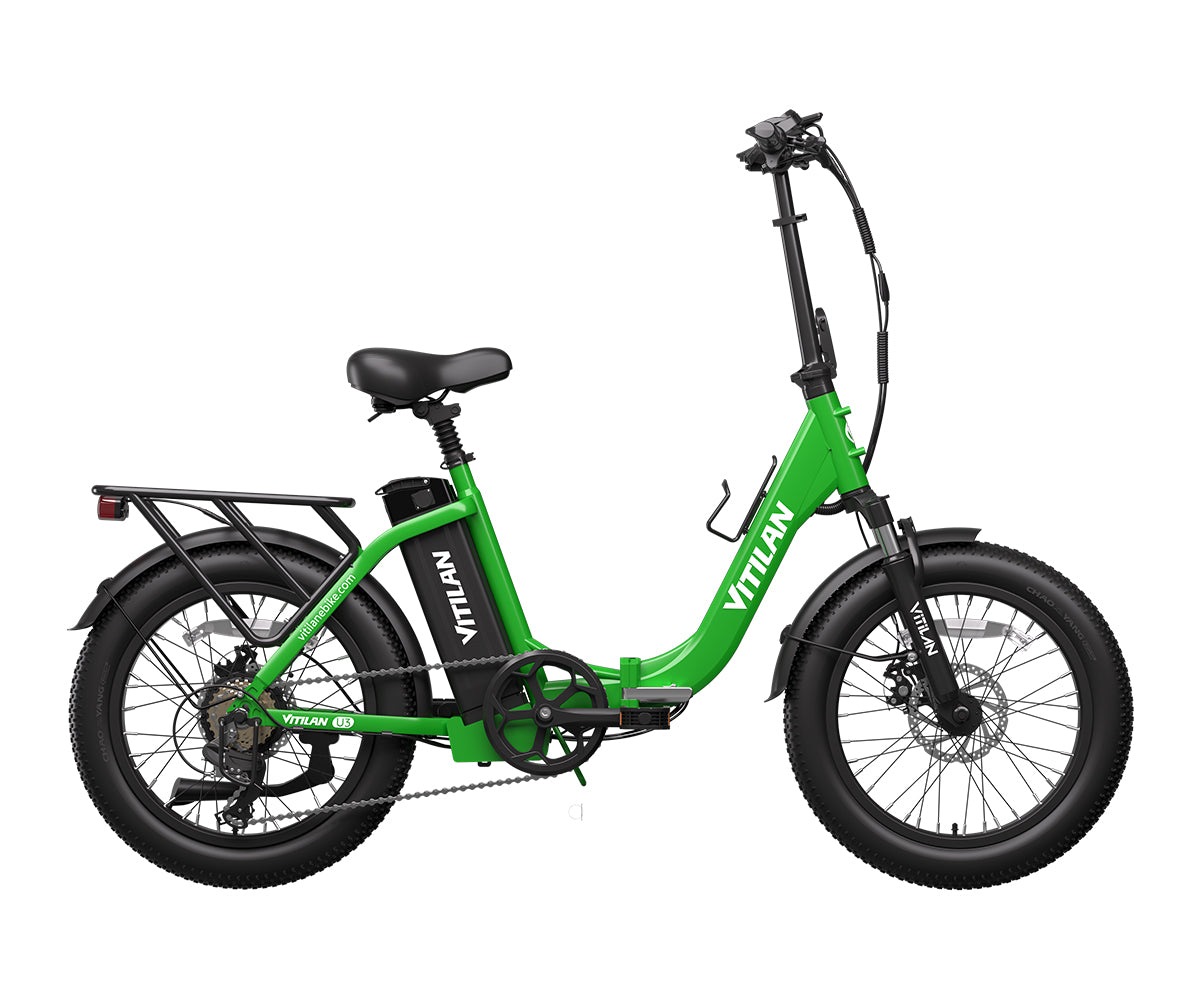

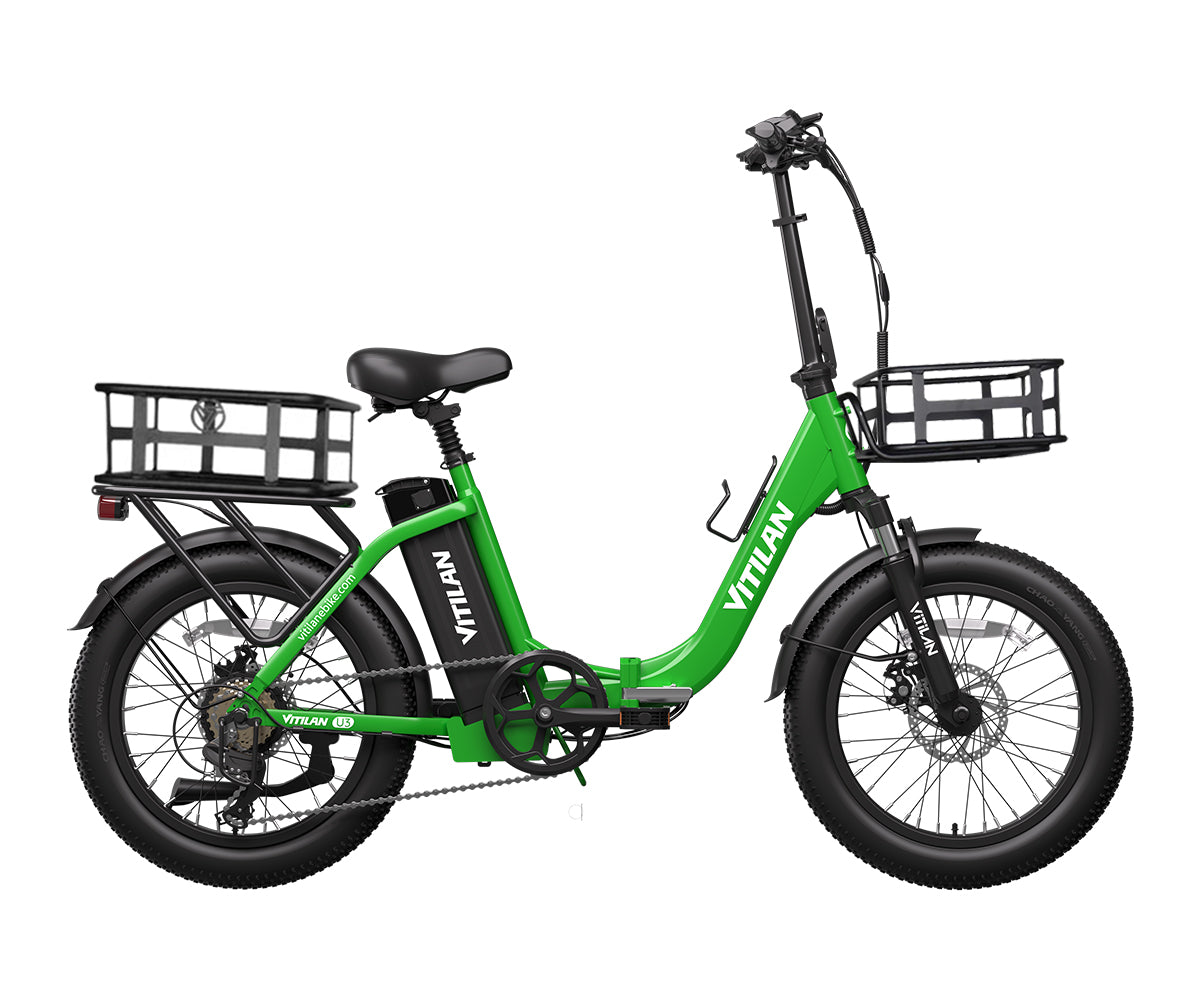

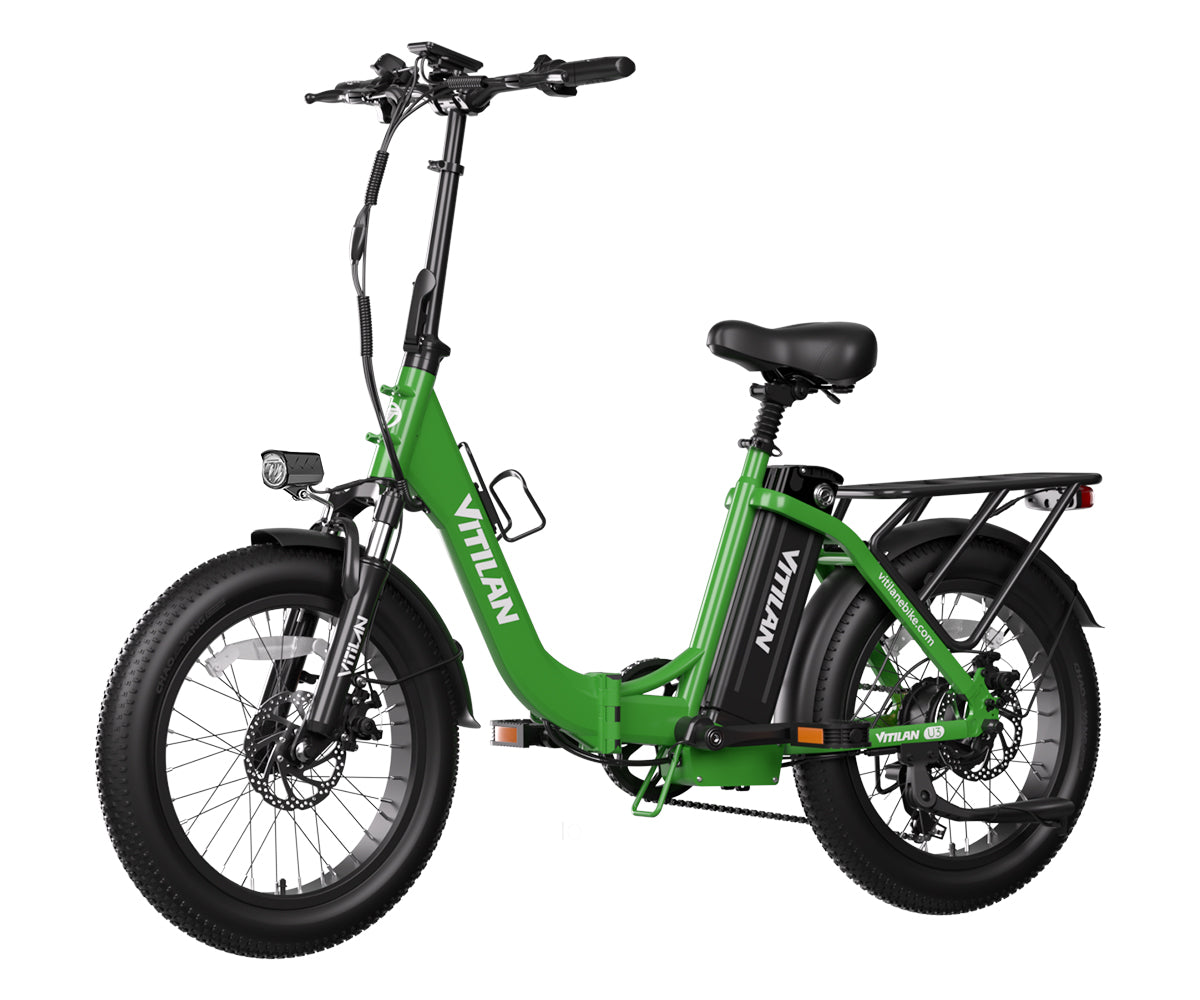

Green

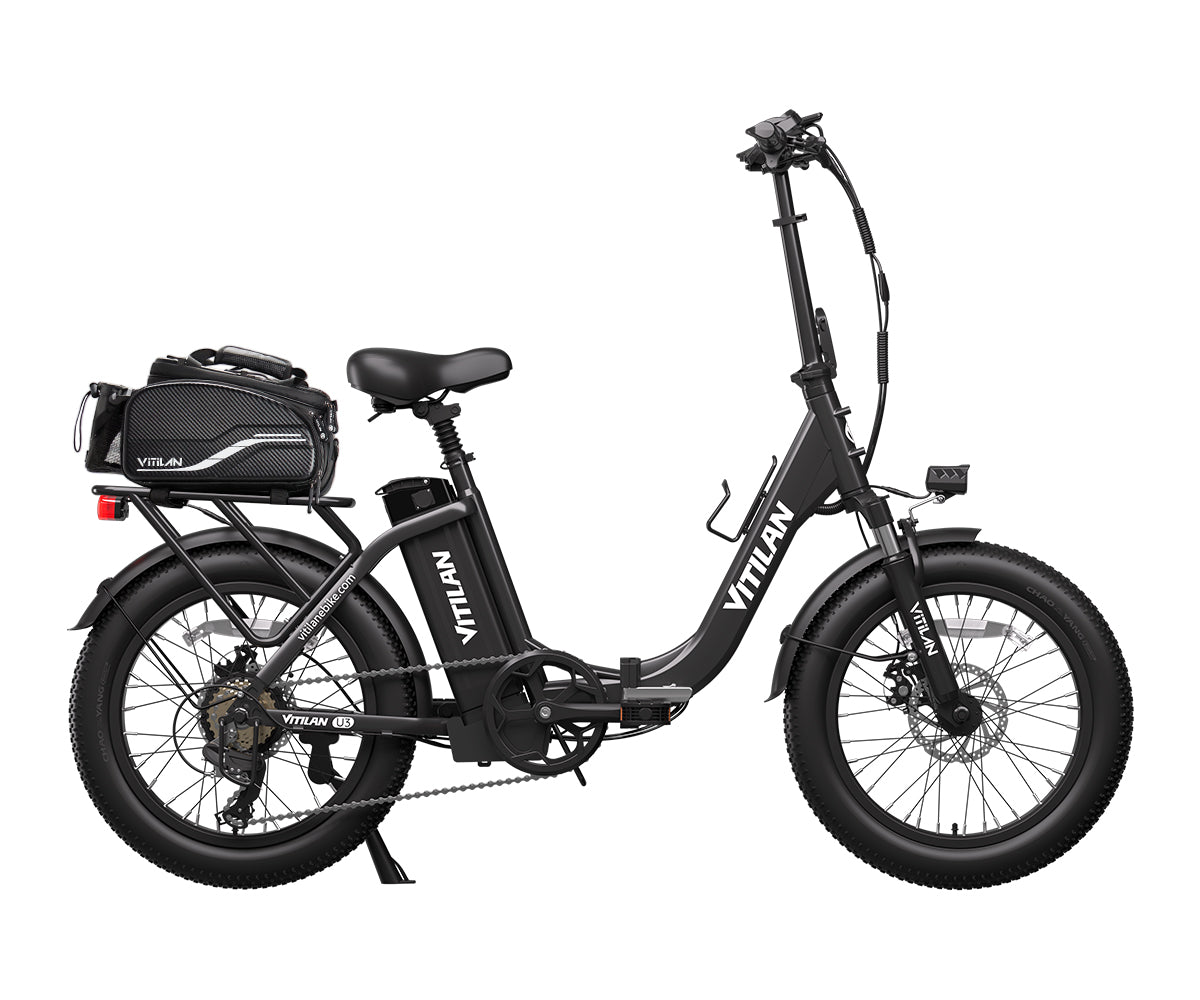

Black

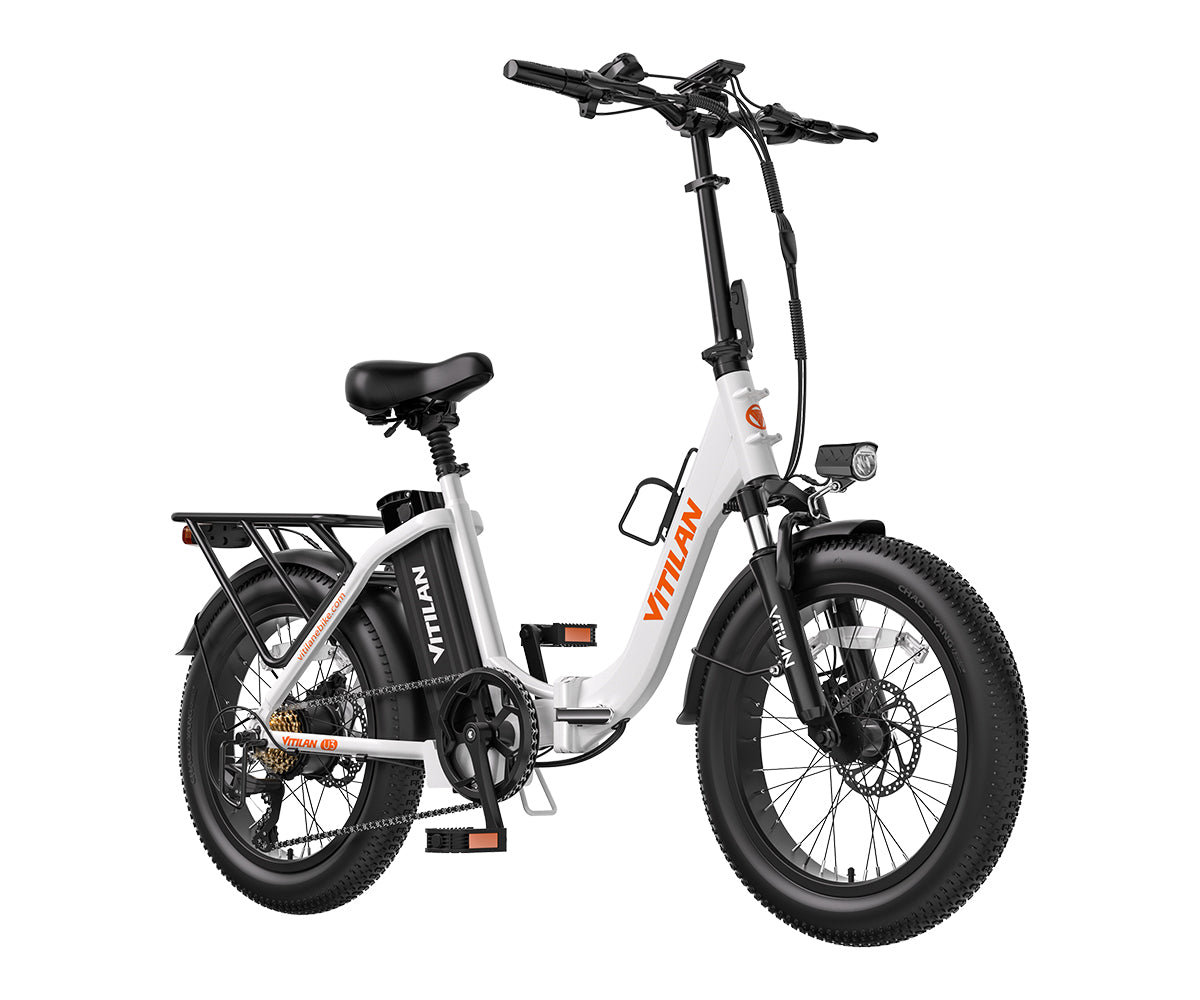

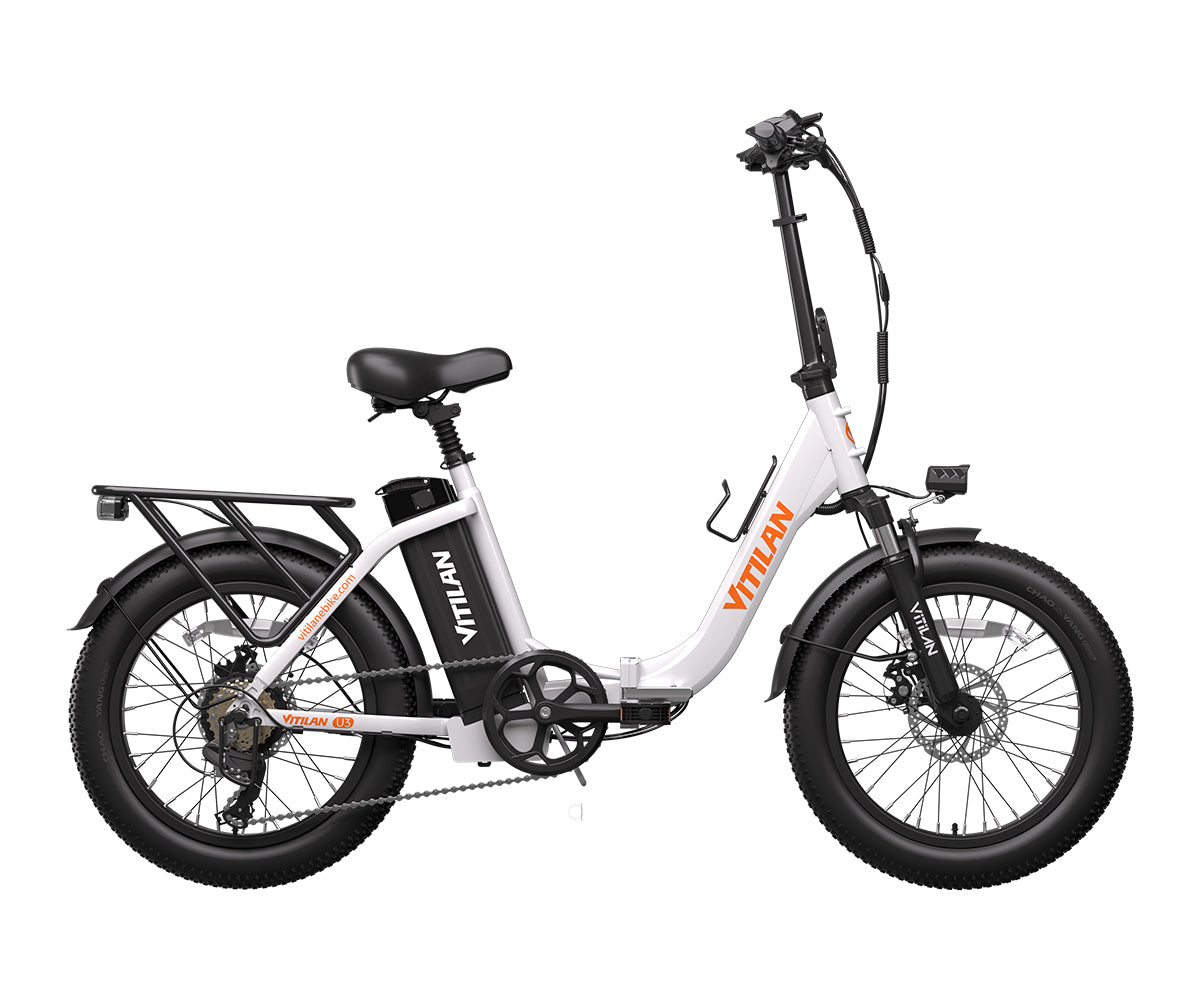

White
U3 Full Suspension Foldable Fat Tire Electric Bike

U3 Full Suspension Foldable Fat Tire Electric Bike

保修.png__PID:4ab603a5-1fc4-4a08-8550-36f626fca5d4

12-Month Warranty

01运输中、物流-线性.png__PID:7e96a0c9-6515-4330-bdd4-4c4654b6947a

Free Shipping

免费保修 (1).png__PID:65156330-3dd4-4c46-94b6-947ab52c8e6f

30 Days Return

客服.png__PID:d44c4654-b694-4ab5-ac8e-6f6ddab22067

24-hour Fast Response

A Milestone in Urban Commuting.

Not just for your daily routine, but a gateway to a healthier lifestyle

1

28 MPH

Throttle Speed

2

750W/1056W

Rated/Peak Motor

3

48V 13AH

Battery

路线.png__PID:b9ce603f-efea-482b-8b63-12a955026e43

30-45 Miles

Range Per Charge
 (Estimate)

充电器.png__PID:e38bbfc8-bdc5-4043-9abc-19ab8d5b621c

5-6 Hours

Charging Time

齿轮,设置,设定.png__PID:baabe81e-1387-44b6-9262-a42e132799ca

7 Speed

Gear Shifting System

More Convenient Options

The U3 was developed in response to consumer demand. With the success and popularity of the U7 model in the market, in order to make Step-thru e-bikes available to more customers, we launched the more cost-effective U3. Unlike the U7 2.0, this model features a more affordable configuration for short trips and commuting, helping consumers to get a lighter and more portable e-bike with a lower budget.

黑色.jpg__PID:8543f766-652b-4e0d-b25c-54d6ae3eb699
U3电机2.gif__PID:711bb569-f79e-4103-b996-c49217911db8

1056W Peak Brushless Motor

Powered by a 750W brushless rear hub motor (1056W peak).75Nm of torque delivers plenty of power, faster starting speeds, and higher hill climbing ability. In electric-only throttle mode, the top speed is up to 28MPH, giving you a silky smooth ride!

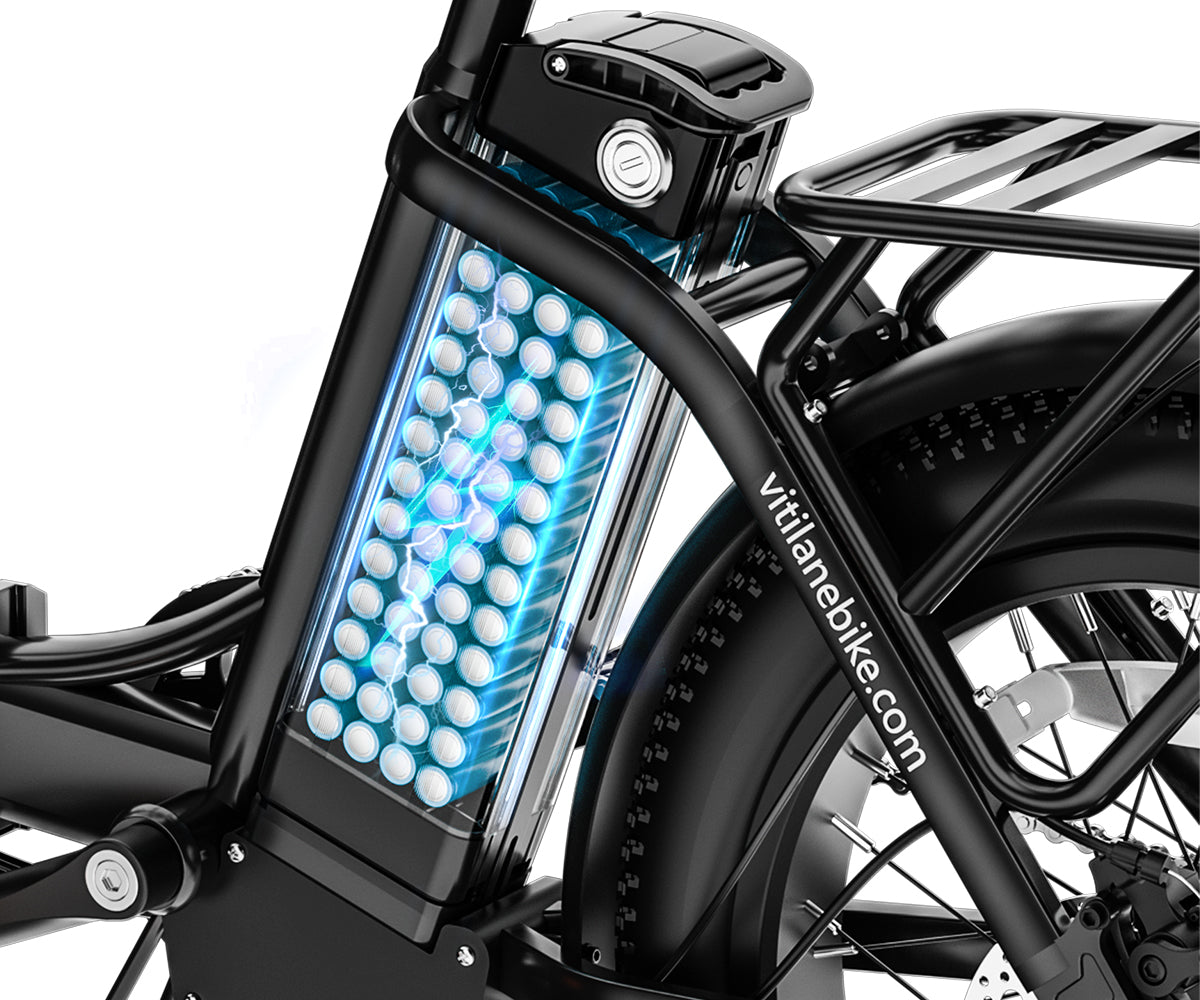

48V 13ah High-capacity Removable Battery

Long-lasting performance with a 48V 13ah removable battery that can be easily installed and removed for charging when you need it. You can ride 30-45 miles in 5-6 hours per charge.

电池、.jpg__PID:66652bae-0df2-4c54-96ae-3eb69919a381
前叉.jpg__PID:6d91e5bc-24c1-4ae6-90d7-0b5d7f2e8fbb

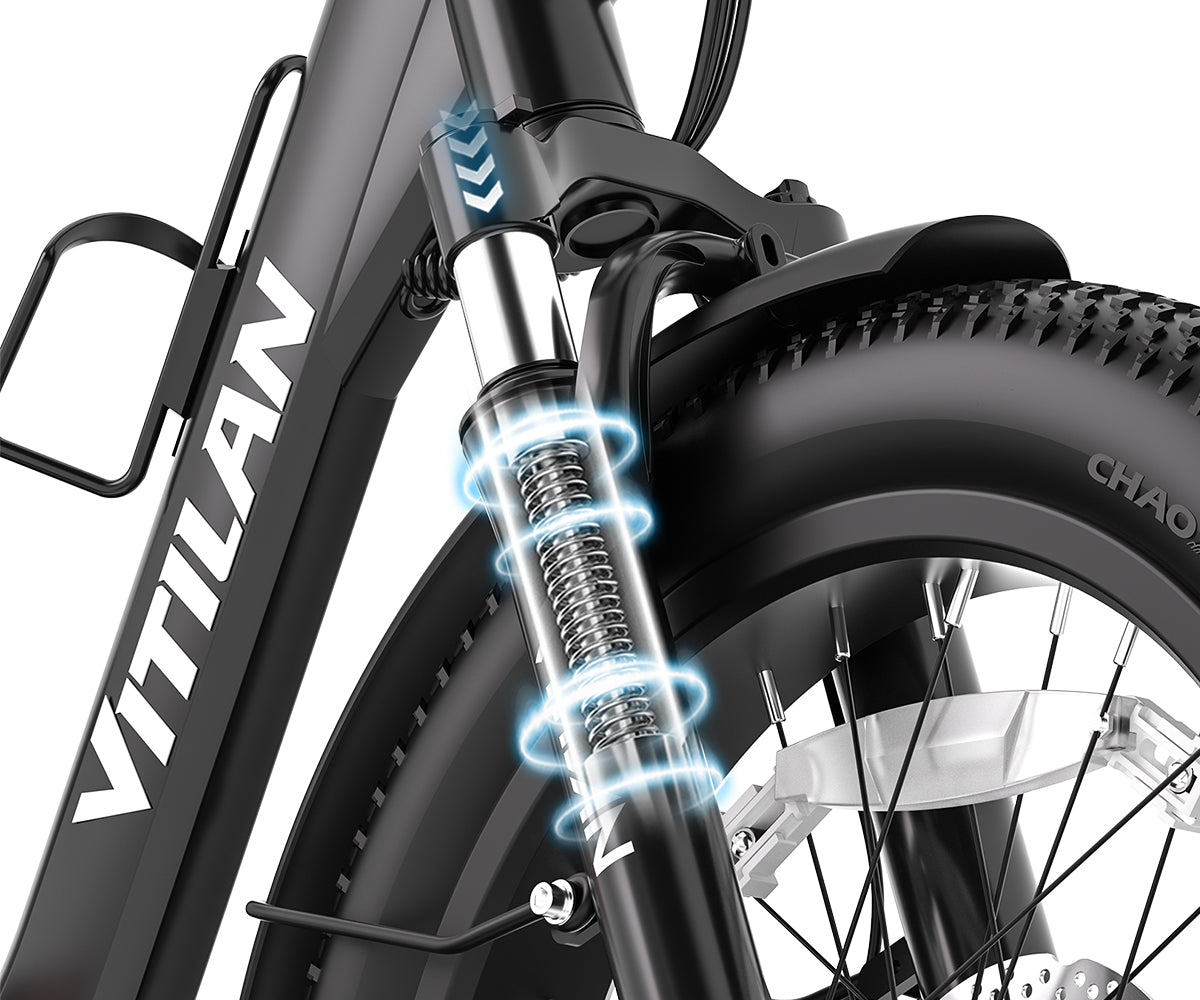

Front Fork And Seatpost Suspension

Allows you to tackle uneven surfaces and rough terrain with confidence, a smooth and comfortable ride welcomes easy riding

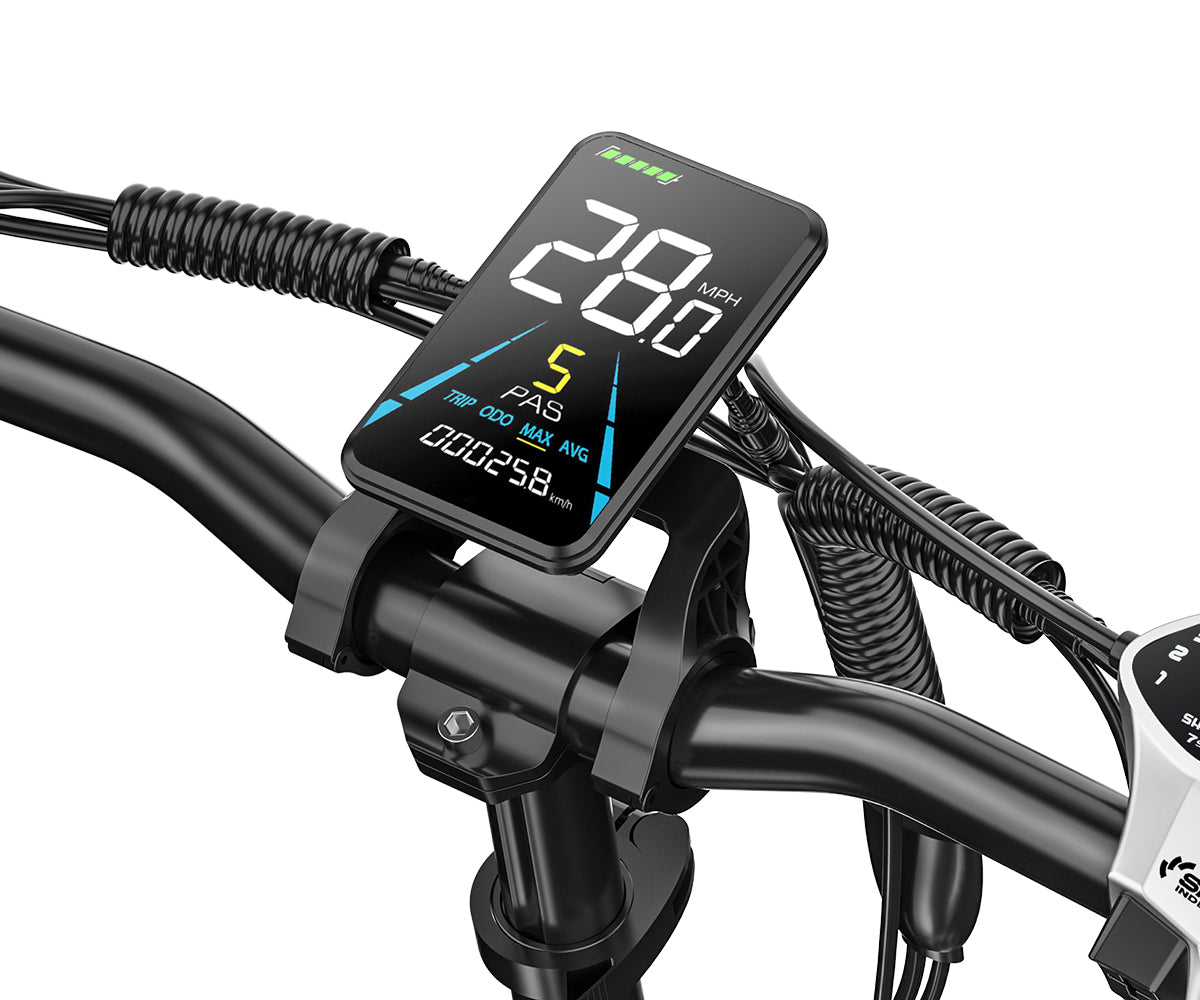

LCD Display

Tracking your speed, pedal assist level, battery level and other ride essentials ensures you stay informed and in control throughout your journey.

仪表.jpg__PID:929f3ad1-3900-484c-a1c3-3201809b3049
前轮.jpg__PID:eacdd4f0-aa5b-4b1b-8b03-f4e953edbed6

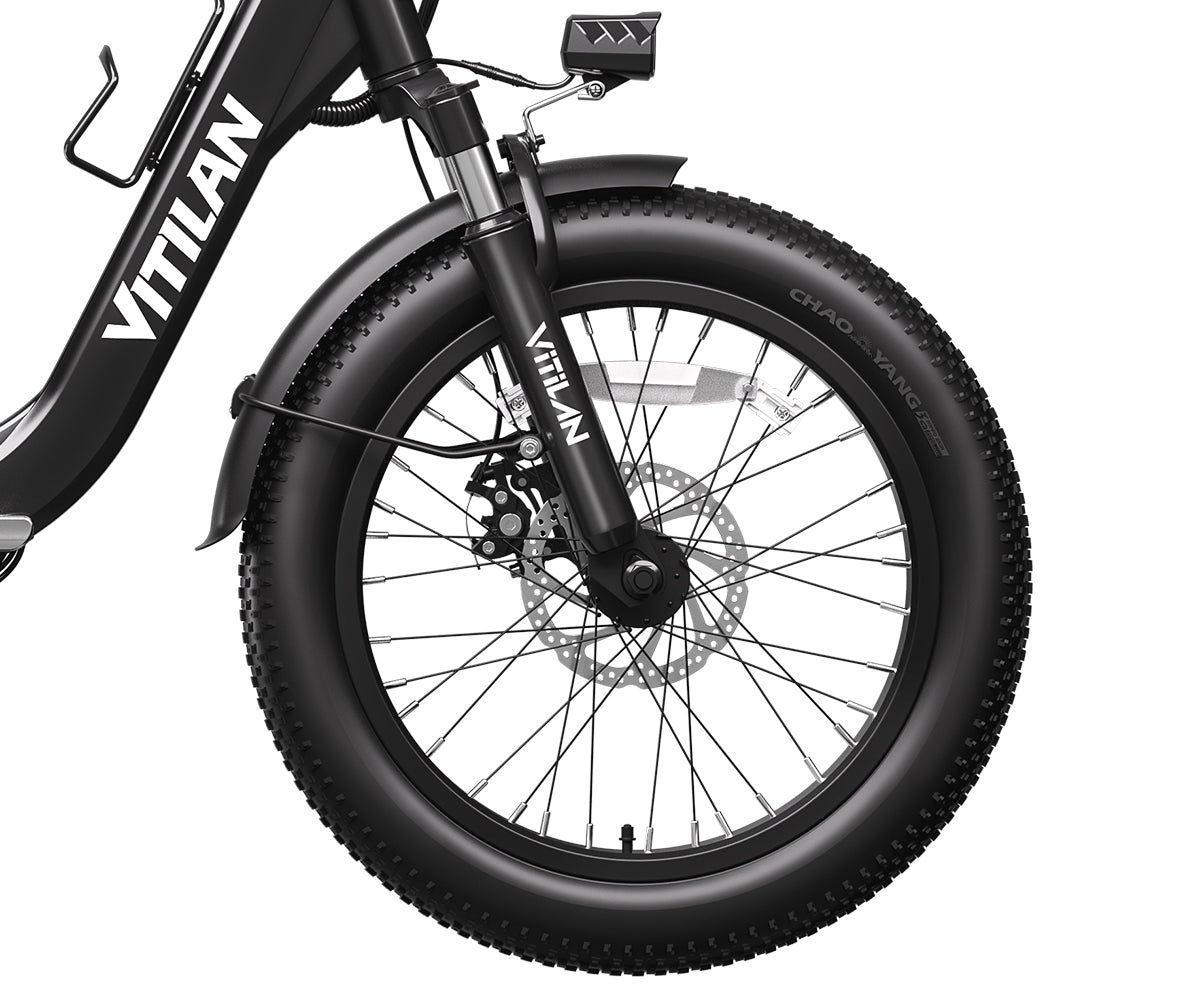

20"*3" Spoked Wheels

The 20*3.0 fat tires with granular pattern grip the ground more powerfully and anti-skid

油门.jpg__PID:2afa3388-94d5-4d5b-9dae-b15810573774

Pedal Assist & Throttle

1-5 level pedal assist saving time and energy, even without hard pedaling, you can still keep up with the traffic easily,no worry of rush hour and being late for work anymore.

变速.jpg__PID:49bc86a8-e936-43cc-a102-a77c3a467116

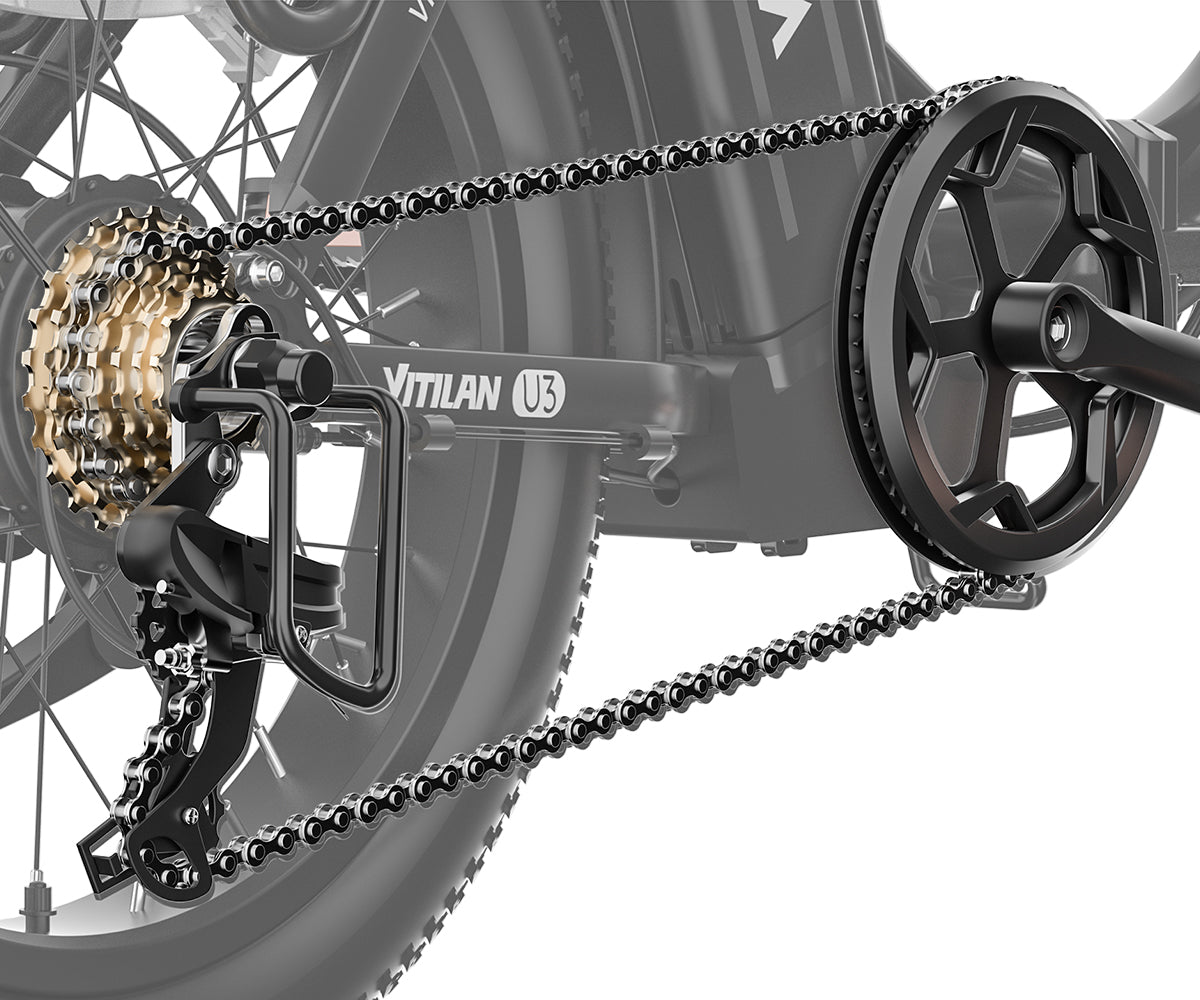

Shimano 7 Speed

You can choose different gears according to the road conditions, giving you a more comfortable riding experience.

折叠.jpg__PID:aa5bbb1b-8b03-44e9-93ed-bed676f2ea60

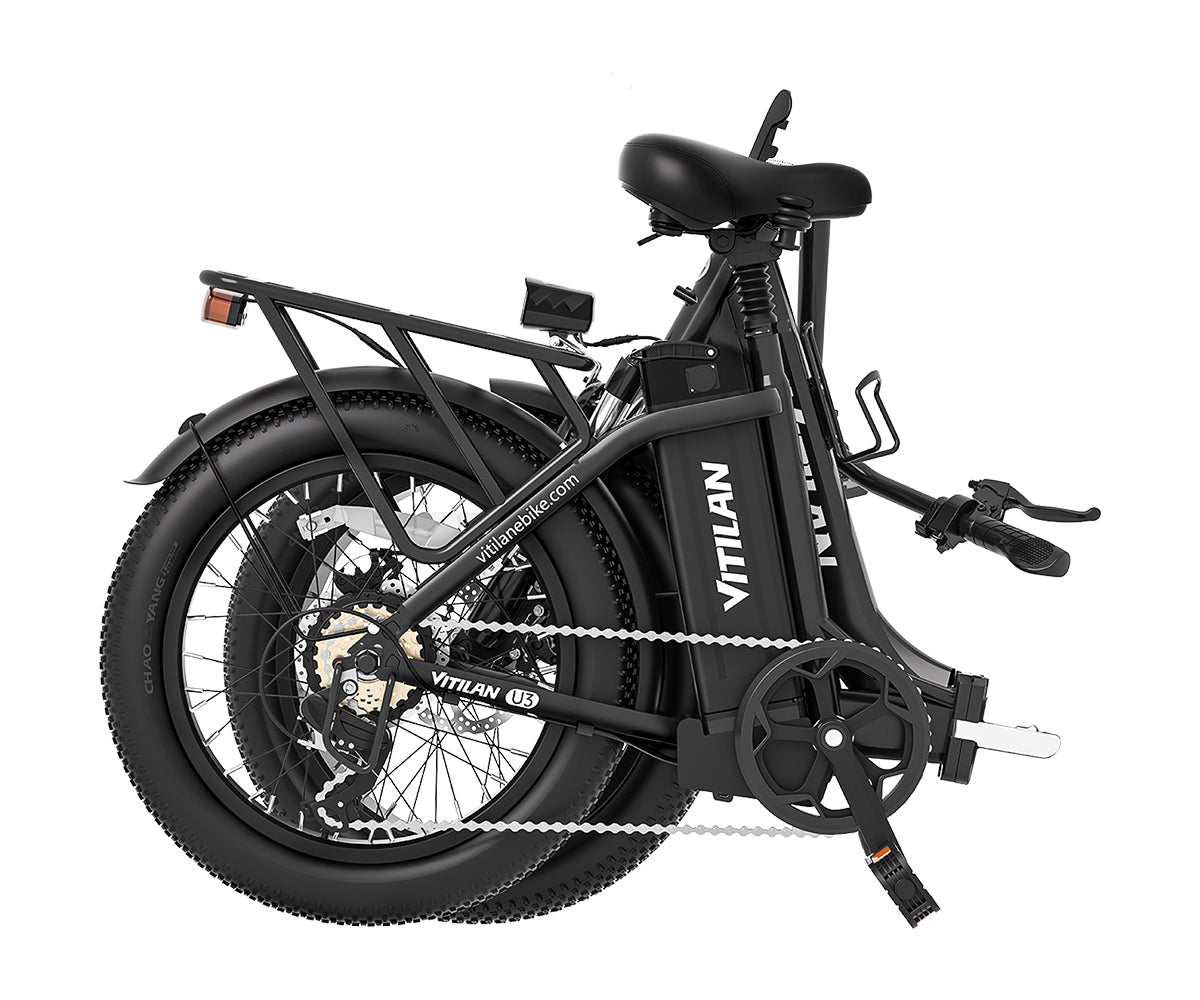

Simple and easy to fold design

Fold for storage and unfold the bike when you're ready to hit the streets or ride.

刹车盘.jpg__PID:d4f0aa5b-bb1b-4b03-b4e9-53edbed676f2

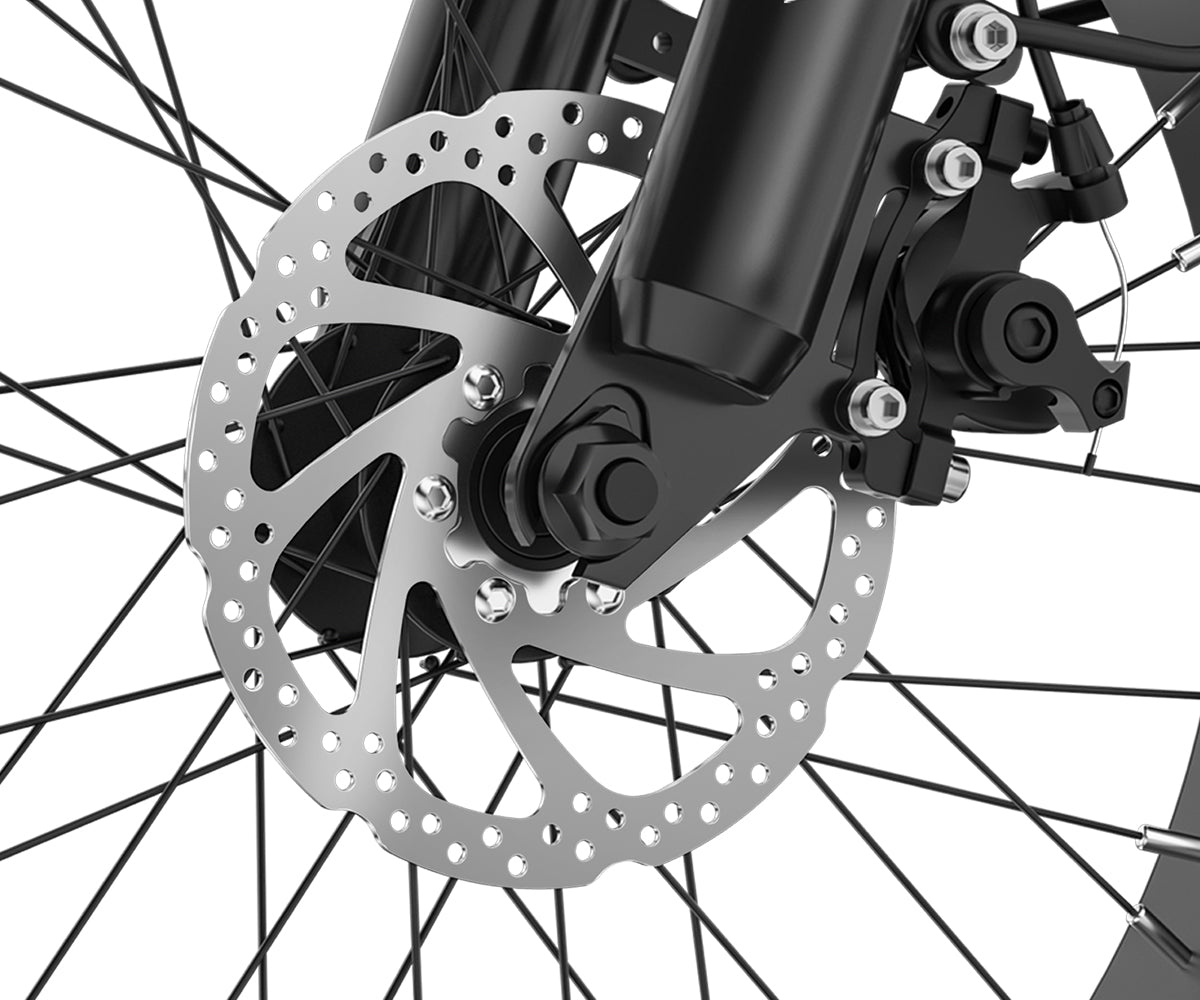

160 mm Mechanical Brake

Provides reliable braking power to give you peace of mind when travelling over different terrains.

前后灯.jpg__PID:338894d5-bd5b-4dae-b158-10573774913c

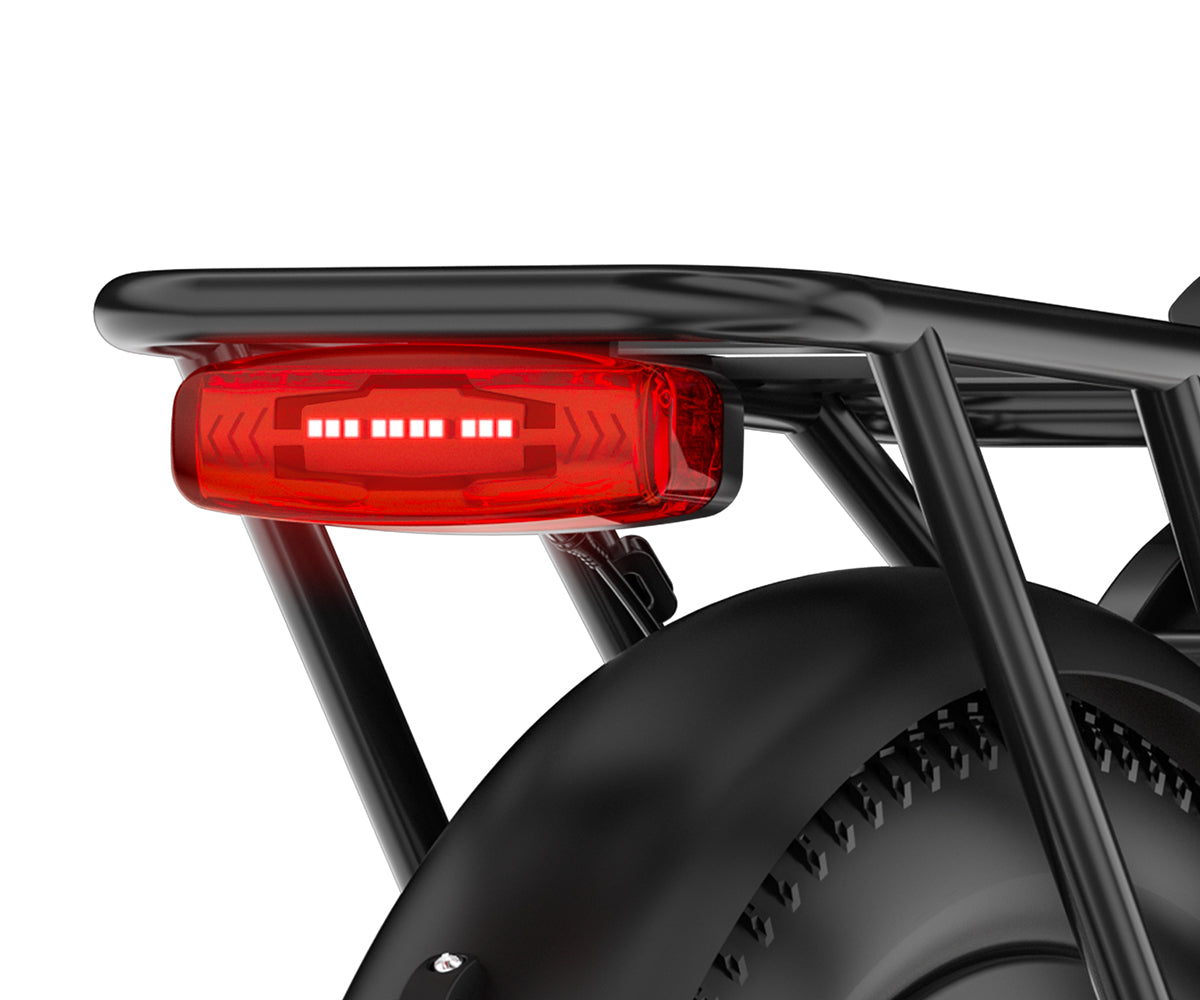

Front and rear lights

Illuminates and improves visibility on the road ahead in low light and dark conditions.

The Main Features

More detailed feature introduction for the U3 electric bicycle

Compare

ModelU3U7 2.0
Price£899.00£999.00
Max Range 30 miles(pure electric)
/45 miles(pedal assist)
40 miles(pure electric)
/65+ miles(pedal assist)
Ebike ClassClass 3 Class 3
Battery Capacity 48V 13AhSAM-SUNG 48V 20Ah
Gears 7-Speed Shimano7-Speed Shimano
TireCHAOYANG 20" x 3" tiresCST 20" x 4" Puncture-Proof  Fat tires
Brakes160MM Mechanical Disc Brakes180mm Hydraulic Disc Brake
Motor 750W(Peak Motor: 1056W) 750W(Peak Motor: 1200W)
Display LCD S2+ dsiplay
FoldableYESYES
SuspensionDual SuspensionDual Suspension
Pedal Assist Mode1-5 Level Pedal Assist1-5 Level Pedal Assist
Suggested Rider Height5'3"-6'5"5'3"-6'5"

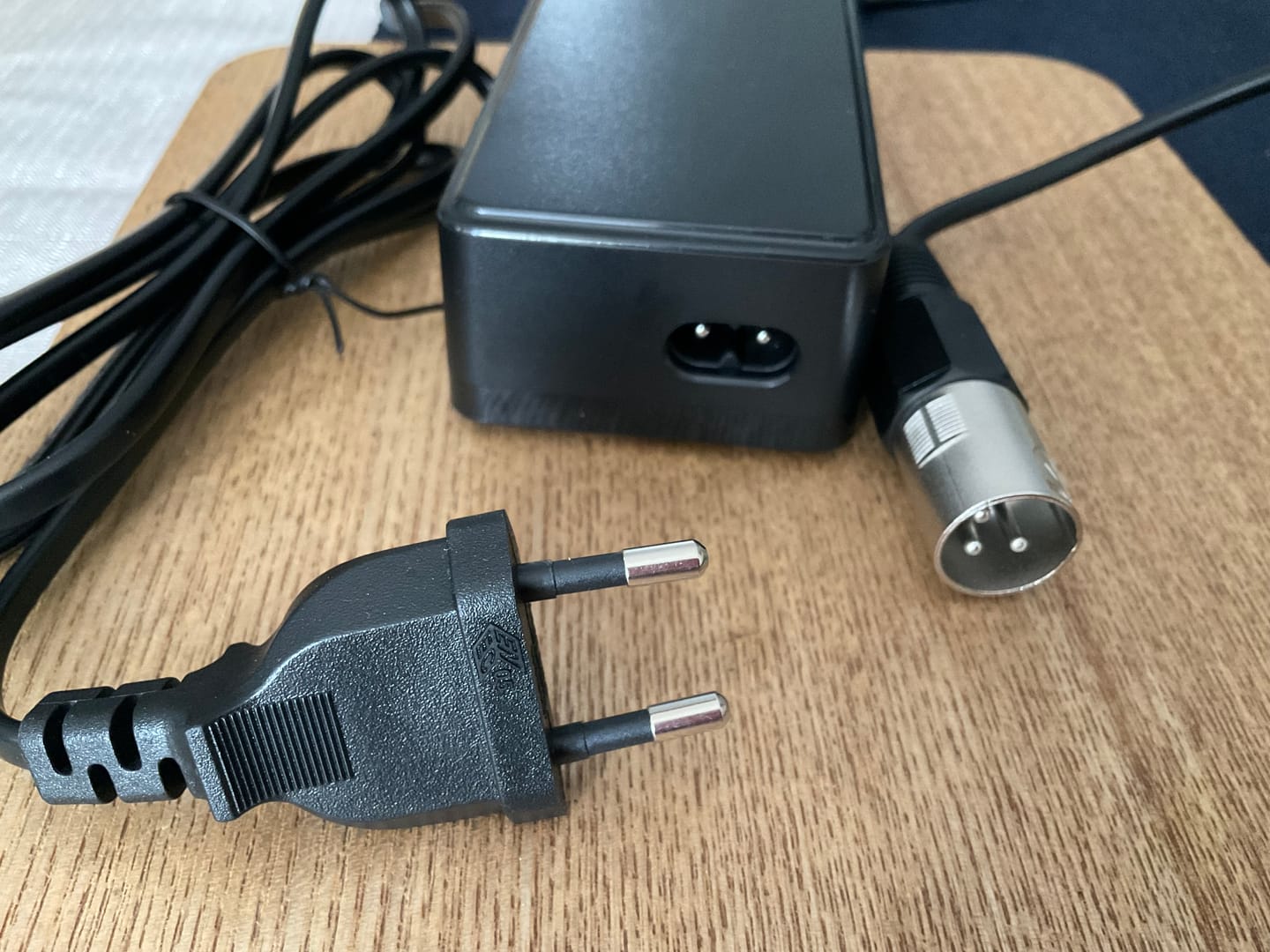

Charger54.6V 2.0A54.6V 3.0A
Weight29.8 KG 32.9 KG
Seat To FloorMinimum 34.25"
/ Maximum 39.3"
Minimum 34.25"
/Maximum 39.3"
Suggested Rider Height5'3"-6'5"5'3"-6'5"
Warranty12 Months18 Months
Best ForAll TerrainAll Terrain
ThrottleTwist Grip ThrottleTwist Grip Throttle
Specification
  • Battery:  48V 13Ah
  • Range 30-40 Miles
  • Hub Motor 1056W Brushless Gear Motor
  • Total Payload Capacity: 330 lbs
  • Suspension With Locking and Adjustment Functions
  • E-bike Class: Class 3
  • Bell/Horn: Electric Horn
  • Twist Grip Throttle
  • IP level IPX6
  • Recommended Rider Heights: 5'3" ~ 6'5"
  • Tires 20" x 3" Fat Tires
  • Gear Shifting System: Shimano 7 Speed Gear
  • Pedal Assist Intelligent 0~5 Level Pedal Assist
  • Frame Material ‎Aluminum
  • Controller 48V / 22A
  • Rear Light: Signal Turn Light/48V LED Light
  • Display: 48V LCD Display
  • Fender: Included
Geometry
12.jpg__PID:5f0d666d-ec6d-4e6e-b22b-09489bc396be
  • A: Total length 66.92"
  • B :Handlebar height 49.21"
  • C: Rear shelf height 24.4''
  • D: Lowest seat to floor 33.46"
  • E: Limit height of seat bag 38.18"
  • F: Top tube length 22.83"
  • G: Frame to ground height 13.58''
  • H: Handlebar length 24.4"
  • І: Head tube length 16.73"
  • J: Wheelbase 49.21"
折叠尺寸.jpg__PID:10b9d3ea-7b82-4e25-a83b-b031d3377f7f
  • A Height: 35.82 inches (910mm)
  • B Length: 30.51inches (775mm)
  • C Width: 16.14 inches (410mm)
Installation & Use
U3.jpg__PID:9449e254-1c18-4f22-98d2-3f732ef3eee6
FAQS
When can I expect it to ship?

The U3 is currently a pre-order model and is expected to ship on August 19th, upon arrival we will ship it to you within 24 hours and expect it to arrive at your address in 3-7 business days.

Does my Jasion ebike come pre-assembled?

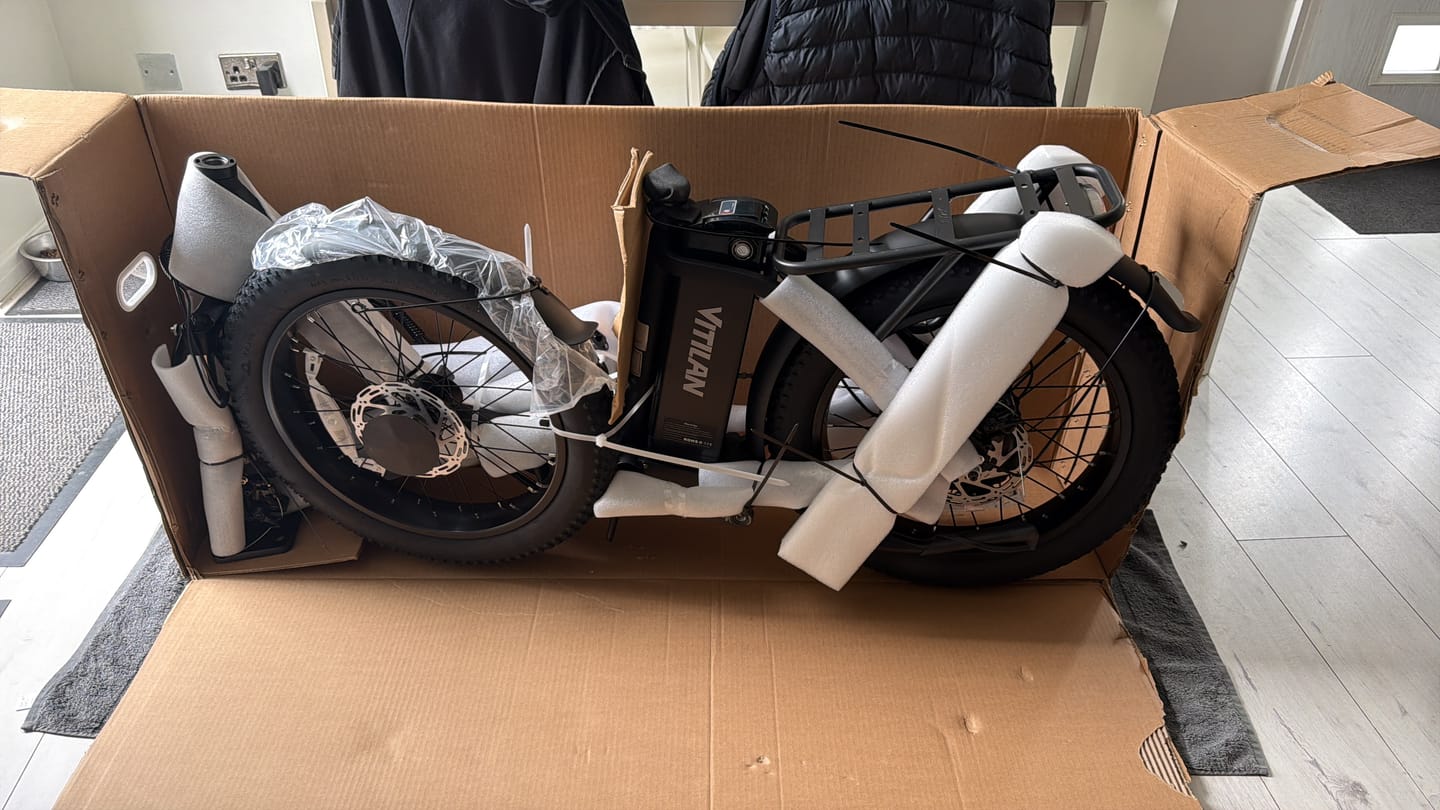

Your e-bike arrives 90% assembled. There are just a few pieces to put into place once you take the bike out of the box. For unboxing and setup instructions, please follow the guides on our U3 manual.

What is the maximum speed of each PAS level?
  • PAS1 Top speed 16mph
  • PAS2 Top speed 18mph
  • PAS3 Top speed 20mph
  • PAS4 Top speed 23mph
  • PAS5 Top speed 28mph
